The text widget allows you to denote notes to add detail the configuration. The text block uses HTML which also allows you to input webpage references as well as format any text (see table below for some basic HTML formatting). The text widget can be added to the dashboard by selecting "File" in the main ribbon, clicking on "add widget", and then choosing the "Text Block" option.

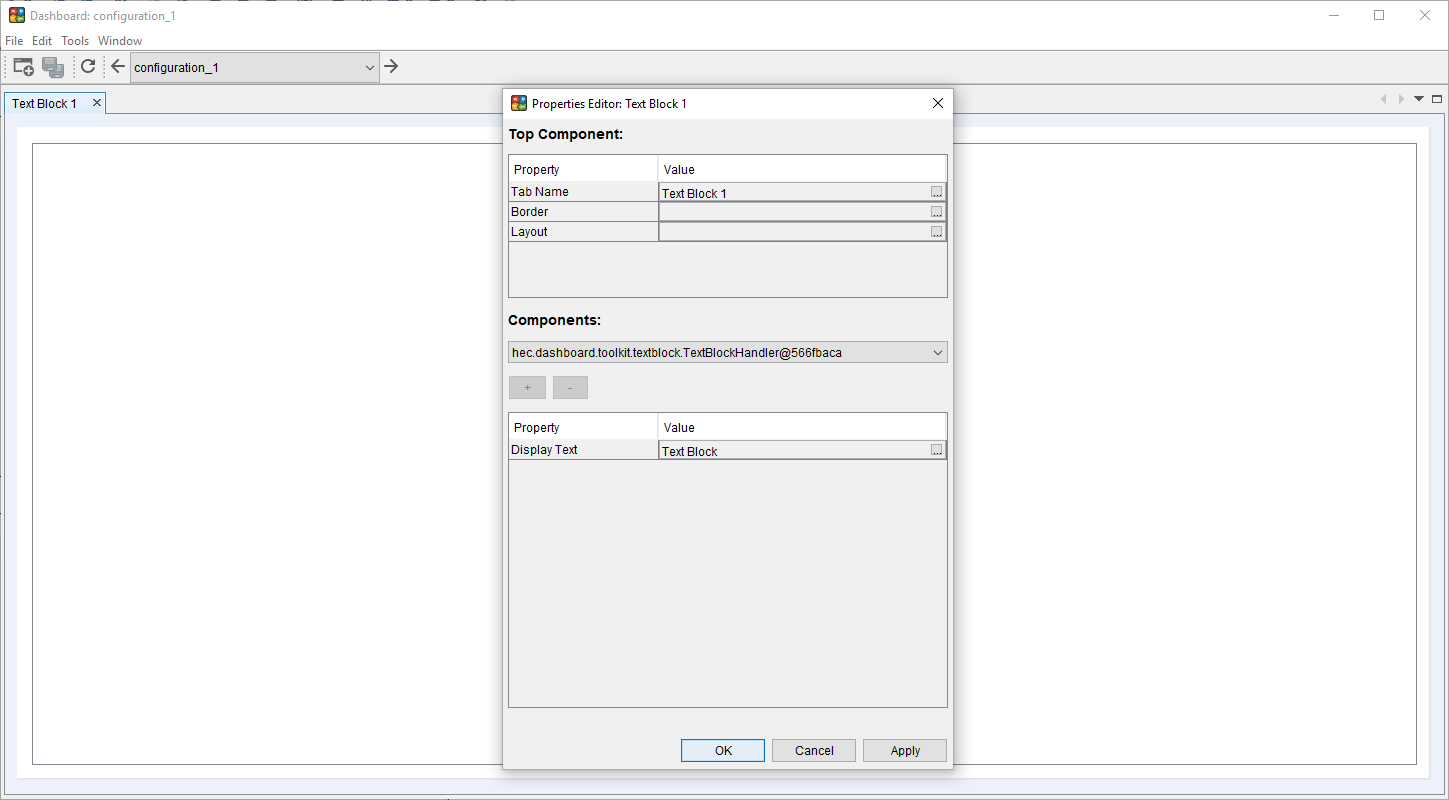

To modify the text block, right click on the text block tab (in the above example, it is labeled "Text Block 1") and select "properties". This will open the "Properties Editor" as shown in Figure 1. The editor allows you to change the tab name and the text that is displayed. For any item that is wished to be modified, click on the "..." box on the right side. The "Tab Name" option modifies the name of the display tab while the "Display Text" is the text that is displayed within the text block.
| Description | Microsoft Word | HTML | HTML Example | Results |
|---|
| Bold Text | Bold (Ctrl+b) | <b> </b> | <b> HTML Example </b> | HTML Example |
| Italicizes Text | Italic (Ctrl+i) | <i> </i> | <i> HTML Example </i> | HTML Example |
| Subscripted Text | Subscript (Crtl+=) | <sub> </sub> | H<sub>2</sub>O | H2O |
| Superscripted Text | Superscript (Crtl+Shift++) | <sup> </sup> | R<sup>2</sup> | R2 |
| Underline/inserted Text | Underline (Ctrl+u) | <ins> </ins> | <ins> HTML Example </ins> | HTML Example |
| Strikethrough/Deleted Text | Strikthrough | <del> </del> | <del> HTML Example </del> | HTML Example |
| Highlighted Text | Text Highlight Color | <mark> </mark> | <mark> HTML Example </mark> | HTML Example |
| Line Break | (Enter) | <br> | HTML <br> Example | HTML Example |
| Specific for CAVI Dashbaord | Result |
|---|
| $FORECAST$ | Will display the current Forecast name. |
| $WATERSHED$ | Will display the current watershed name. |
