Shortwave Radiation
Shortwave Radiation is a radiant energy produced by the sun with wavelengths ranging from infrared through visible to ultraviolet. Shortwave radiation is therefore exclusively associated with daylight hours for a particular location on the Earth's surface. The energy arrives at the top of the Earth's atmosphere with a Flux (Watts per square meter) that varies very little during the year and between years. Consequently, the flux is usually taken as a constant for hydrologic simulation purposes. Some of the incoming radiation is reflected by the top of the atmosphere and some is reflected by clouds. A portion of the incoming radiation is absorbed by the atmosphere and some is absorbed by clouds. The Albedo is the fraction of the shortwave radiation arriving at the land surface that is reflected back into the atmosphere. The shortwave radiation that is not reflected or absorbed above the land surface, and is not reflected by the land surface, is available to drive hydrologic processes such as evapotranspiration and snowpack melting.
The Shortwave Radiation Method included in the Meteorologic Model is only necessary when Energy Balance Methods are used for evapotranspiration or snowmelt. The options available cover a range of detail from simple to complex. Simple specified methods are also available for input of a time-series gage or grid. Each option produces the net shortwave radiation arriving at the land surface where it may be reflected or absorbed. More detail about each method is provided in the following sections.
Bristow Campbell
The Bristow Campbell Method (Bristow and Campbell, 1984) uses a conceptual approach to estimating the shortwave radiation at the land surface. During the daylight hours, any clouds present in the atmosphere will block some portion of incoming solar radiation which reduces solar heating and results in a lower temperature. Conversely, lack of clouds permits much more of the solar radiation to pass through the atmosphere which allows greater heating and generally higher air temperatures. In theory, the daily temperature range should be small on cloudy days and large on non-cloudy days. This correlation between temperature range and incoming solar radiation is exploited as a simple way to compute shortwave radiation using only air temperature.

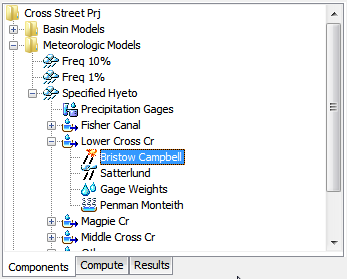

The Bristow Campbell Method includes a Component Editor with parameter data for each subbasin in the Meteorologic Model. The Watershed Explorer provides access to the Shortwave Component Editor using a picture of solar radiation, as shown in the following figure.
An Air Temperature method must be selected in the meteorologic model.

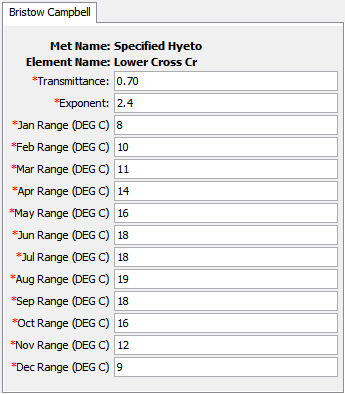

The Component Editor for each subbasin in the Meteorologic Model is used to enter parameter data, as shown in the following figure. The Transmittance represents the maximum clear sky characteristics over the watershed. The default value of the transmittance is 0.70. The Exponent controls the timing of the maximum temperature and may vary from humid to arid environments. The default value of the exponent is 2.4.
The Average Monthly Temperature Range must be entered. This value is the difference between the average monthly high temperature and the average monthly low temperature.
FAO56
The FAO56 Method implements the algorithm detailed by Allen, Pereira, Raes, and Smith (1998). The algorithm calculates the solar declination and solar angle for each time interval of the simulation, using the coordinates of the subbasin, Julian day of the year, and time at the middle of the interval. The solar values are used to compute the extra-terrestrial radiation for each subbasin. Total daylight hours are computed based on the Julian day and compared to the number of actual sunshine hours. Shortwave radiation arriving at the ground surface is then computed using the most common relationship accounting for reduction in sunshine hours due to cloud cover.

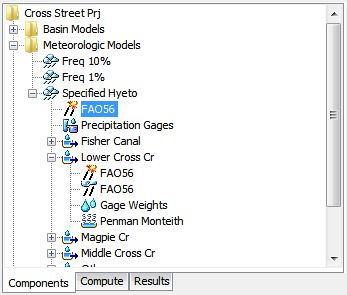

The Watershed Explorer provides access to the Shortwave Component Editors using a picture of solar radiation. The FAO56 Method includes a Component Editor with parameter data for all subbasins in the Meteorologic Model. A Component Editor is also included for each subbasin, as shown in the following figure.

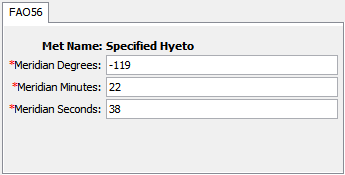

A Component Editor for all subbasins in the Meteorologic Model includes the Central Meridian of the Time Zone, as shown in the following figure. There is currently no specification for the time zone so the meridian must be specified manually. The central meridian is commonly the longitude at the center of the local time zone. Meridians west of zero longitude should be specified as negative while meridians east of zero longitude should be specified as positive. The meridian may be specified in decimal degrees or degrees, minutes, and seconds depending on the Program Settings.

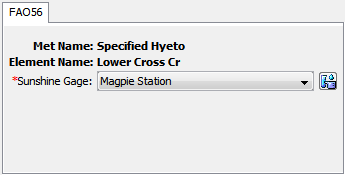

The Component Editor for each subbasin in the Meteorologic Model is used to enter parameter data necessary to account for differences in cloud cover across the watershed. Cloud cover is considered through a time-series of Sunshine Hours. Sunshine hours are defined as the number of decimal hours per full hour where the shortwave radiation exceeds 120 watts per square meter (WMO, 2008).
Gridded Hargreaves
The Gridded Hargreaves Method is the same as the regular Hargreaves Method (described in a later section) except that the Hargreaves equations are applied to each grid cell using separate boundary conditions instead of area-averaged values over the whole subbasin.

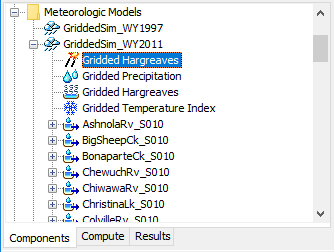

The Gridded Hargreaves Shortwave Method includes a Component Editor with parameter data for all subbasins in the Meteorologic Model. The Watershed Explorer provides access to the Shortwave Component Editor using a picture of solar radiation, as shown in the following figure.

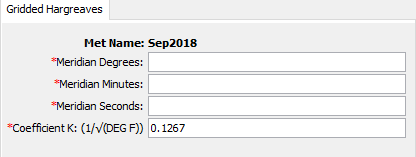

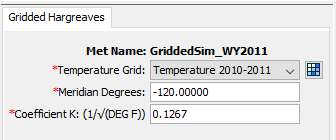

The Component Editor requires the Central Meridian of the Time Zone. If the Basin Model spans multiple time zones, then enter the central meridian for the time zone containing most of the Basin Model drainage area. The central meridian is the longitude at the center of the local time zone. Meridians west of zero longitude should be specified as negative while meridians east of zero longitude should be specified as positive. The meridian may be specified in decimal degrees or degrees, minutes, and seconds depending on the Program Settings.
The Component Editor requires a Hargreaves Shortwave Coefficient. The default Hargreaves shortwave coefficient is 0.17 per square root of degrees Celsius; this is equivalent to 0.1267 per square root of degrees Fahrenheit. The default Hargreaves shortwave coefficient of 0.17 per square root of degree Celsius is implicit in the Hargreaves and Samani (1985) potential evapotranspiration formulation. The Hargreaves shortwave coefficient can be adjusted by the user.
Gridded Shortwave
The most common use of the method is to utilize gridded shortwave radiation estimates produced by an external model, for example, a dynamic atmospheric model. If it is used with a Transform Method other than ModClark, an area-weighted average of the grid cells in the subbasin is used to compute the shortwave radiation time-series for each subbasin.
The Gridded Shortwave Method includes a Component Editor with parameter data for all subbasins in the Meteorologic Model. The Watershed Explorer provides access to the Shortwave Component Editor using a picture of solar radiation, as shown in the following figure.

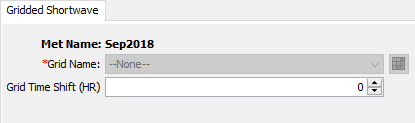

A Component Editor for all subbasins in the Meteorologic Model includes the selection of the data source. A Radiation Gridset must be selected for all subbasins. The current gridsets are shown in the selection list. If there are many different gridsets available, you may wish to choose a gridset from the selector accessed with the Grid button next to the selection list. The selector displays the description for each gridset, making it easier to select the correct one.
Hargreaves
The Hargreaves Shortwave Method implements the shortwave radiation algorithm described by Hargreaves and Samani (1982). The method calculates the solar declination and solar angle for each time interval of the simulation, using the coordinates of the subbasin, Julian day of the year, and time at the middle of the compute interval. The solar values are used to compute the extra-terrestrial radiation for each subbasin. The daily temperature range, daily maximum temperature less daily minimum temperature, functions as a proxy for cloud cover. Shortwave radiation arriving at the ground surface is computed as a function of extraterrestrial radiation and the daily temperature range.

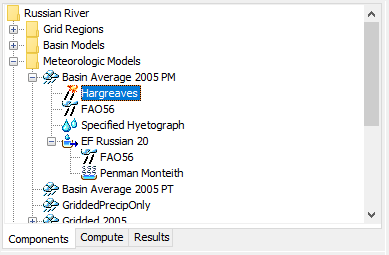

The Hargreaves Shortwave Method is parameterized for all subbasins in the Basin Model. Select the Hargreaves Shortwave node in the Watershed Explorer to access the Hargreaves Shortwave Component Editor, as shown in the following figure. A Temperature method must be selected in the meteorologic model.

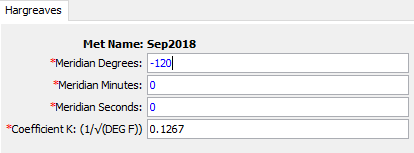

The Hargreaves Shortwave Component Editor is shown in the following figure. The user must enter the Central Meridian of the Time Zone and the Hargreaves Shortwave Coefficient. If the Basin Model spans multiple time zones, then enter the central meridian for the time zone containing most of the Basin Model drainage area. The central meridian is the longitude at the center of the local time zone. Meridians west of zero longitude should be specified as negative while meridians east of zero longitude should be specified as positive. The meridian may be specified in decimal degrees or degrees, minutes, and seconds depending on the program settings. The default Hargreaves shortwave coefficient is 0.17 per square root of degrees Celsius; this is equivalent to 0.1267 per square root of degrees Fahrenheit. The default Hargreaves shortwave coefficient of 0.17 per square root of degree Celsius is implicit in the Hargreaves and Samani (1985) potential evapotranspiration formulation. The Hargreaves shortwave coefficient can be adjusted by the user.
Specified Pyranograph
A Pyranometer is an instrument that can measure incoming solar shortwave radiation. They are not part of basic meteorological observation stations, but may be included at first order stations. This method may be used to import observed values from a pyranometer or it may be used to import estimates produced by an external model. This is the recommended choice for use with the Priestley Taylor Evapotranspiration Method, where an effective radiation is used which includes both shortwave and longwave radiation.

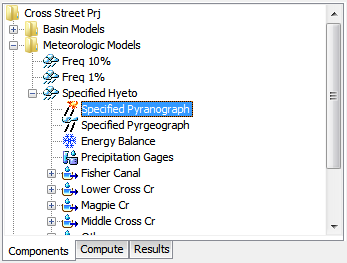

The Specified Pyranograph Method includes a Component Editor with parameter data for all subbasins in the Meteorologic Model. The Watershed Explorer provides access to the Shortwave Component Editors using a picture of solar radiation, as shown in the following figure.
The Component Editor for all subbasins in the Meteorologic Model includes the time-series gage of shortwave radiation for each subbasin. A Solar Radiation Gage must be selected for a subbasin. The current gages are shown in the selection list.
Interpolated Shortwave
Gridded data better captures the meteorology temporally and spatially across a watershed when compared to gage measurements at a single point. However, hourly or sub-hourly gridded meteorology products are not always available, particularly for historic events of interest to the modeler. In these cases, a gridded dataset can be created by interpolating point observations recorded at weather stations. The Interpolated Shortwave Method allows the user to develop an interpolated shortwave radiation grid based on point radiation gage data.

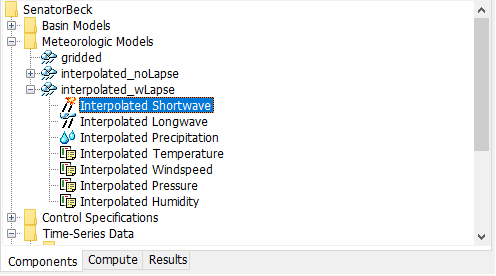

The Interpolated Shortwave Method includes a Component Editor with parameter data for all subbasins in the Meteorologic Model. The Watershed Explorer provides access to the Shortwave Component Editor. The Component Editor for each subbasin in the Meteorologic Model is used to enter parameter data that defines the Interpolation Method and to select radiation gages to use in the interpolation. The Interpolation Method can be selected from the dropdown menu. An interpolation method must be selected. The user has four interpolation options briefly summarized below.
The Inverse Distance interpolation method assumes the weight, or influence, of a gage is equal to the inverse of its distance from the interpolated cell. The Inverse Distance Squared interpolation method assumes the weight of a gage is equal to the inverse of the square of its distance from the interpolated cell. The Nearest Neighbor interpolation method simply assigns the nearest value to the cell center of interest without considering values of other nearby points. Bilinear interpolation within HEC-HMS relies on triangulation of the irregularly spaced gage locations. Based on the gage coordinates, a Triangulated Irregular Network (TIN) is created to represent the gage network in the basin model coordinate system. This TIN defines triangles, where each gage is a corner of one or more triangles. Given this TIN, a value at any given point is computed by first identifying the triangle in which that point falls, then interpolating within that triangle using Barycentric Coordinates. You must use three or more gages and the gages need to bound all grid cells.
Select Radiation Gages in the dropdown rows under the Gage column. The Radius of Influence is an optional parameter and represents the maximum interpolation distance. Beyond its radius of influence, the gage will not affect the cell values of the interpolated grid. Radiation Gages used in this method must be loaded in as Time-Series of Radiation Data with defined latitude and longitude information.
An interpolated shortwave radiation grid will be created once the simulation has been computed. Once the compute is complete the interpolated grid will be saved with the same name as the Meterologic Model in DSS format in the HEC-HMS project directory.
Reduced Solar Constant
The Reduced Solar Constant Shortwave Method implements the shortwave radiation algorithm described within TVA (1972) and Follum et al, (2015). The method estimates the amount of shortwave radiation at a specific location (grid cell or subbasin) by reducing the solar constant (1366 Watts / square meter) using several factors including distance from the earth to the sun, atmospheric scattering, and slope/aspect of the terrain. If the basin model is not georeferenced and/or doesn't have an associated terrain model, these calculations will proceed assuming the location is at the equator and at sea-level.

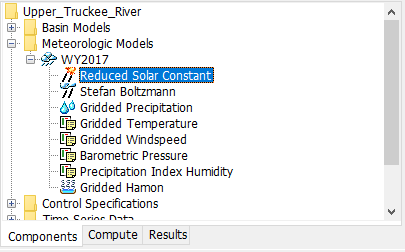

The Reduced Solar Constant Shortwave Method includes a Component Editor with parameter data for all subbasins in the Meteorologic Model. The Watershed Explorer provides access to the Reduced Solar Constant Shortwave Editor using a picture of solar radiation, as shown in the following figure.

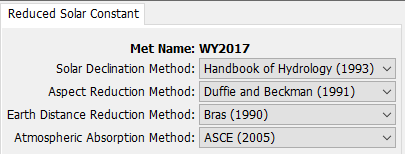

The Reduced Solar Constant Shortwave Component Editor is shown in the following figure. The user must select a solar declination, aspect reduction, earth distance reduction, and atmospheric absorption method.
