There are a number of properties for basin models that are selected on the Component Editor shown in the figure below. These properties control configuration settings for the basin model itself or for all hydrologic elements within the basin model. Access the Component Editor from the Watershed Explorer on the "Components" tab by clicking on a basin model icon.

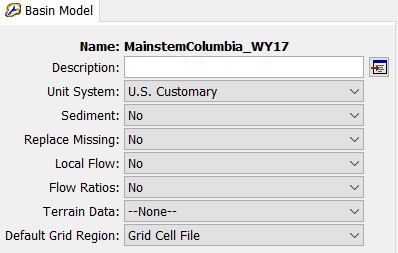

Basin model component editor showing option properties for gridded subbasins and flow computations.

Gridded Subbasins

Subbasins that use the ModClark gridded transform method are considered gridded subbasins. Loss rate and surface transform calculations will be carried out on a grid cell basis. Properties of the grid cells are specified in a special grid cell file. A grid region is a main model component, and is a reference to the grid cell file. The grid cell file specifies which grid cells are in each subbasin, along with the properties of each cell including location, area within the subbasin, and distance from the grid cell to the subbasin outlet. Regardless of which transform method is selected, if gridded meteorological methods will be used, the grid cell file is also required. One grid region can be specified for all subbasins in the basin model, or a separate grid region can be selected for each subbasin using component or global ModClark transform editors. The grid cell file format is described in Appendix B. If you wish to use gridded subbasins, you must prepare the file external to the program or from the GIS menu in HEC-HMS and import the file into the project when defining a grid region. The appropriate grid region must be specified as part of the basin model parameter data (see figure). Access the Component Editor from the Watershed Explorer on the "Components" tab by clicking on a basin model icon.

Local Flow

Local flow can be computed at junctions. Local flow is defined as the sum of all subbasin and source outflows entering a junction. The subbasin and source elements must be connected directly to the junction. Any subbasin or source outflow that moves through a routing element is no longer considered local flow. When local flow is disabled, a junction element computes outflow as the sum of all inflow from any type of element. No local flow is computed. When local flow is enabled, a junction continues to compute outflow as the sum of all inflow. However, in addition to computing outflow, it additionally computes local flow (sum of subbasin and source elements). Enabling or disabling local flow is done in the Component Editor for the basin model (see figure). Access the Component Editor from the Watershed Explorer on the "Components" tab by clicking on a basin model icon.

Flow Ratio

Flow ratios can be used to increase or decrease the computed flow by a fixed ratio; they can only be applied to subbasin and source elements. Once the flow ratios are turned on, each subbasin and source can have a separate ratio, or no ratio. It is not necessary to enter a ratio for every element in order to have a ratio at one element. The ratio 1.0 is used if no ratio is specified. The calculations for computing outflow proceed normally according to the method choices and parameter data for each element. At the conclusion of normal processing, the flow ratio is applied to produce the final outflow.


Flow ratios are enabled or disabled in the Component Editor for the basin model (see figure). After disabling the flow ratios, any ratios specified for subbasin and source elements in the basin model are removed and cannot be retrieved again or undeleted. The actual flow ratio is specified in the Component Editor for the element on the "Options" tab. Access the editor from the Watershed Explorer on the "Components" tab by clicking on the element icon. The last tab in the Component Editor is the "Options" tab. The flow ratio field is disabled when flow ratios are disabled in the basin model. The field becomes enabled when flow ratios are enabled in the basin model. The flow ratio field is never enabled for elements other than subbasins and sources.

Missing Flow

Missing inflow data for an element can be set to zero. Under some conditions it may be possible for source or subbasin elements to produce outflow with missing values. Downstream routing elements generally cannot process missing data. When missing flow data is not replaced, any element that encounters missing inflow data will halt a simulation with an error message. When missing flow data is replaced, the missing inflow data is set to zero and a message is generated that indicates how many values were missing. Processing in the routing element proceeds normally after any missing inflow data is set to zero. Setting the action to take with missing inflow data is done on the Component Editor for the basin model (see figure).

Unit System

Each basin model must be in either United States customary units (sometimes called English units) or in system international units (also called metric units). All parameter data in a basin model must be in the same unit system. If you change the unit system, all data will be automatically converted to the new unit system. All time-series data, paired data, and gridded data referenced in a basin model will be in its own unit system. If necessary these referenced data are automatically converted to the unit system of the basin model during a simulation.


Select the unit system using the Component Editor for the basin model (see figure). Access the Component Editor by clicking the basin model icon on the "Components" tab of the Watershed Explorer. If you change the unit system, all data is automatically converted to the new selection.

Sediment

The movement of sediment in the watershed can be included as part of the hydrology of the basin model. When the sediment is disabled, no sediment processing will take place in the basin model. When the sediment is enabled, appropriate sediment simulation components are added to elements in the basin model. Subbasin elements include surface erosion and wash-off. Reach elements include erosion, deposition, and sediment transport. Reservoir elements include sediment settling and sediment transport. Source, junction, diversion, and sink elements pass sediment through the channel network.

Water Quality

Nutrient water quality (nitrogen and phosphorus) has been turned off for version 4.4.
