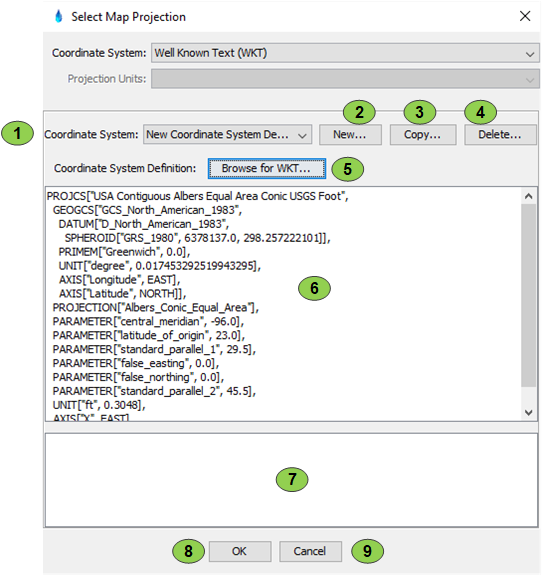

Item

Description

 1

This dropdown is used to select the coordinate system to edit, copy, or delete.

 2

Use this button to create a new coordinate system definition.

 3

Use this button to copy the current coordinate system definition.

 4

Use this button to delete the current coordinate system definition. Note that HEC-MetVue defined coordinate systems cannot be deleted.

 5

Use this button to brows the file system for a file that contains a valid Well Known Text (WKT) definition for a coordinate system

 6

This box shows the WKT for the current coordinate system definition. HEC-MetVue defined coordinate system definitions appear greyed out and can be viewed but not edited.

 7

This box shows any errors that occur when the WKT string is parsed to create a valid coordinate system. If any errors appear here, the coordinate system definition cannot be saved.

 8

Accept the edit changes and save the coordinate system definitions.

 9

Cancel all edits and dismiss the coordinate system editor dialog.
