XML Schema Documentation

Table of Contents

top

Schema Document Properties

Target Namespace http://www.hec.usace.army.mil/xmlSchema/cwms/hec-datatypes
Element and Attribute Namespaces
  • Global element and attribute declarations belong to this schema's target namespace.
  • By default, local element declarations have no namespace.
  • By default, local attribute declarations have no namespace.

Declared Namespaces

Prefix Namespace
Default namespace http://www.hec.usace.army.mil/xmlSchema/cwms/hec-datatypes
xml http://www.w3.org/XML/1998/namespace
xs http://www.w3.org/2001/XMLSchema
Schema Component Representation
<xs:schema targetNamespace="http://www.hec.usace.army.mil/xmlSchema/cwms/hec-datatypes" elementFormDefault="unqualified">
...
</xs:schema>
top

Global Definitions

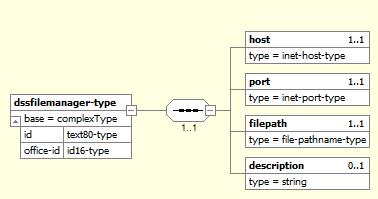

Complex Type: dssfilemanager-type

Super-types: None
Sub-types: None
Name dssfilemanager-type
Abstract no
Diagram
XML Instance Representation
<...
id="text80-type [0..1]"
office-id="id16-type [0..1]">
<host> inet-host-type </host> [1]
<port> inet-port-type </port> [1]
<filepath> file-pathname-type </filepath> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="dssfilemanager-type">
<xs:sequence>
<xs:element name="host" type="inet-host-type"/>
<xs:element name="port" type="inet-port-type"/>
<xs:element name="filepath" type="file-pathname-type"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="id" type="text80-type" use="optional"/>
<xs:attribute name="office-id" type="id16-type" use="optional"/>
</xs:complexType>
top

Complex Type: dssfile-type

Super-types: None
Sub-types: None
Name dssfile-type
Abstract no
Diagram
XML Instance Representation
<...
id="text80-type [0..1]"
office-id="id16-type [0..1]">
<filepath> file-pathname-type </filepath> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="dssfile-type">
<xs:sequence>
<xs:element name="filepath" type="file-pathname-type"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="id" type="text80-type" use="optional"/>
<xs:attribute name="office-id" type="id16-type" use="optional"/>
</xs:complexType>
top

Complex Type: dss-local-gridfiles-type

Super-types: None
Sub-types: None
Name dss-local-gridfiles-type
Abstract no
Diagram
XML Instance Representation
<...
id="text80-type [0..1]"
office-id="id16-type [0..1]">
<directory> file-pathname-type </directory> [1]
<parameter> xs:string </parameter> [1]
<param-type> dss-parameter-type </param-type> [1]
<duration> xs:positiveInteger </duration> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="dss-local-gridfiles-type">
<xs:sequence>
<xs:element name="directory" type="file-pathname-type"/>
<xs:element name="parameter" type="xs:string"/>
<xs:element name="param-type" type="dss-parameter-type"/>
<xs:element name="duration" type="xs:positiveInteger"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="id" type="text80-type" use="optional"/>
<xs:attribute name="office-id" type="id16-type" use="optional"/>
</xs:complexType>
top

Complex Type: dss-remote-gridfiles-type

Super-types: None
Sub-types: None
Name dss-remote-gridfiles-type
Abstract no
Diagram
XML Instance Representation
<...
id="text80-type [0..1]"
office-id="id16-type [0..1]">
<host> inet-host-type </host> [1]
<port> inet-port-type </port> [1]
<directory> file-pathname-type </directory> [1]
<parameter> xs:string </parameter> [1]
<param-type> dss-parameter-type </param-type> [1]
<duration> xs:positiveInteger </duration> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="dss-remote-gridfiles-type">
<xs:sequence>
<xs:element name="host" type="inet-host-type"/>
<xs:element name="port" type="inet-port-type"/>
<xs:element name="directory" type="file-pathname-type"/>
<xs:element name="parameter" type="xs:string"/>
<xs:element name="param-type" type="dss-parameter-type"/>
<xs:element name="duration" type="xs:positiveInteger"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="id" type="text80-type" use="optional"/>
<xs:attribute name="office-id" type="id16-type" use="optional"/>
</xs:complexType>
top

Complex Type: email-type

Super-types: None
Sub-types: None
Name email-type
Abstract no
Diagram
XML Instance Representation
<...
office-id="id16-type [0..1]"
datastore-id="text80-type [1]">
<host> inet-host-type </host> [1]
<port> inet-port-type </port> [0..1]
<user> xs:string </user> [0..1]
<pass> xs:string </pass> [0..1]
<description> xs:string </description> [0..1]
<from> xs:string </from> [1]
<to> xs:string </to> [1..*]
<cc> xs:string </cc> [0..*]
<bcc> xs:string </bcc> [0..*]
<subject> xs:string </subject> [1]
<body> xs:string </body> [1]
<attachment> file-type </attachment> [0..*]
</...>
Schema Component Representation
<xs:complexType name="email-type">
<xs:sequence>
<xs:element name="host" type="inet-host-type"/>
<xs:element name="port" type="inet-port-type" minOccurs="0"/>
<xs:element name="user" type="xs:string" minOccurs="0"/>
<xs:element name="pass" type="xs:string" minOccurs="0"/>
<xs:element name="description" type="xs:string" minOccurs="0"/>
<xs:element name="from" type="xs:string"/>
<xs:element name="to" type="xs:string" maxOccurs="unbounded"/>
<xs:element name="cc" type="xs:string" maxOccurs="unbounded" minOccurs="0"/>
<xs:element name="bcc" type="xs:string" maxOccurs="unbounded" minOccurs="0"/>
<xs:element name="subject" type="xs:string"/>
<xs:element name="body" type="xs:string"/>
<xs:element name="attachment" type="file-type" maxOccurs="unbounded" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="office-id" type="id16-type" use="optional"/>
<xs:attribute name="datastore-id" type="text80-type" use="required"/>
</xs:complexType>
top

Complex Type: empty-type

Super-types: None
Sub-types: None
Name empty-type
Abstract no
Diagram
XML Instance Representation
<.../>
Schema Component Representation
<xs:complexType name="empty-type"/>
top

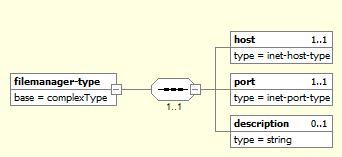

Complex Type: filemanager-type

Super-types: None
Sub-types: None
Name filemanager-type
Abstract no
Diagram
XML Instance Representation
<...>
<host> inet-host-type </host> [1]
<port> inet-port-type </port> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="filemanager-type">
<xs:sequence>
<xs:element name="host" type="inet-host-type"/>
<xs:element name="port" type="inet-port-type"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
top

Complex Type: file-type

Super-types: None
Sub-types: None
Name file-type
Abstract no
Diagram
XML Instance Representation
<...
owner="xs:string [0..1]"
group="xs:string [0..1]"
permissions="xs:string [0..1]">
<filepath> file-pathname-type </filepath> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="file-type">
<xs:sequence>
<xs:element name="filepath" type="file-pathname-type"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="owner" type="xs:string" use="optional"/>
<xs:attribute name="group" type="xs:string" use="optional"/>
<xs:attribute name="permissions" type="xs:string" use="optional"/>
</xs:complexType>
top

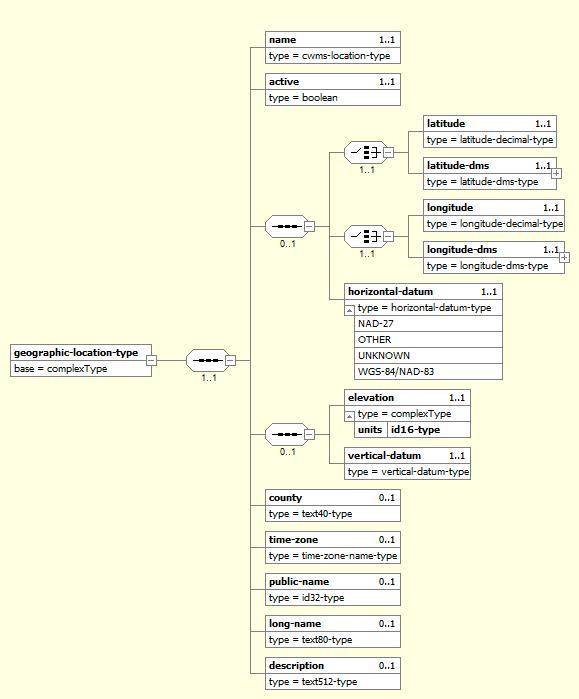

Complex Type: geographic-location-type

Super-types: None
Sub-types: None
Name geographic-location-type
Abstract no
Diagram
XML Instance Representation
<...>
<name> cwms-location-type </name> [1]
<active> xs:boolean </active> [1]
Start Sequence [0..1]
Start Choice [1]
<latitude> latitude-decimal-type </latitude> [1]
<latitude-dms> latitude-dms-type </latitude-dms> [1]
End Choice
Start Choice [1]
<longitude> longitude-decimal-type </longitude> [1]
<longitude-dms> longitude-dms-type </longitude-dms> [1]
End Choice
<horizontal-datum> horizontal-datum-type </horizontal-datum> [1]
End Sequence
Start Sequence [0..1]
<elevation
units="id16-type [1]"> [1]
xs:decimal
</elevation>
<vertical-datum> vertical-datum-type </vertical-datum> [1]
End Sequence
<county> text40-type </county> [0..1]
<time-zone> time-zone-name-type </time-zone> [0..1]
<public-name> id32-type </public-name> [0..1]
<long-name> text80-type </long-name> [0..1]
<description> text512-type </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="geographic-location-type">
<xs:sequence>
<xs:element name="name" type="cwms-location-type"/>
<xs:element name="active" type="xs:boolean"/>
<xs:sequence minOccurs="0">
<xs:choice>
<xs:element name="latitude" type="latitude-decimal-type"/>
<xs:element name="latitude-dms" type="latitude-dms-type"/>
</xs:choice>
<xs:choice>
<xs:element name="longitude" type="longitude-decimal-type"/>
<xs:element name="longitude-dms" type="longitude-dms-type"/>
</xs:choice>
<xs:element name="horizontal-datum" type="horizontal-datum-type"/>
</xs:sequence>
<xs:sequence minOccurs="0">
<xs:element name="elevation">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:decimal">
<xs:attribute name="units" type="id16-type" use="required"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="vertical-datum" type="vertical-datum-type"/>
</xs:sequence>
<xs:element name="county" type="text40-type" minOccurs="0"/>
<xs:element name="time-zone" type="time-zone-name-type" minOccurs="0"/>
<xs:element name="public-name" type="id32-type" minOccurs="0"/>
<xs:element name="long-name" type="text80-type" minOccurs="0"/>
<xs:element name="description" type="text512-type" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
top

Complex Type: id16-annual-values-no-units-type

Super-types: None
Sub-types: None
Name id16-annual-values-no-units-type
Abstract no
Diagram
XML Instance Representation
<...>
<name> id16-type </name> [1]
Start Sequence [1..365]
<value> xs:decimal </value> [1]
<day-of-year> day-of-year-type </day-of-year> [1]
End Sequence
</...>
Schema Component Representation
<xs:complexType name="id16-annual-values-no-units-type">
<xs:sequence>
<xs:element name="name" type="id16-type"/>
<xs:sequence maxOccurs="365">
<xs:element name="value" type="xs:decimal"/>
<xs:element name="day-of-year" type="day-of-year-type"/>
</xs:sequence>
</xs:sequence>
</xs:complexType>
top

Complex Type: id16-annual-values-type

Super-types: None
Sub-types: None
Name id16-annual-values-type
Abstract no
Diagram
XML Instance Representation
<...>
<name> id16-type </name> [1]
Start Sequence [1..365]
<value
units="id16-type [1]"> [1]
xs:decimal
</value>
<day-of-year> day-of-year-type </day-of-year> [1]
End Sequence
</...>
Schema Component Representation
<xs:complexType name="id16-annual-values-type">
<xs:sequence>
<xs:element name="name" type="id16-type"/>
<xs:sequence maxOccurs="365">
<xs:element name="value">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:decimal">
<xs:attribute name="units" type="id16-type" use="required"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="day-of-year" type="day-of-year-type"/>
</xs:sequence>
</xs:sequence>
</xs:complexType>
top

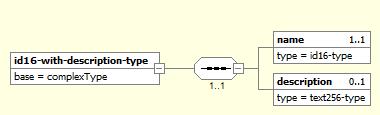

Complex Type: id16-with-description-type

Super-types: None
Sub-types: None
Name id16-with-description-type
Abstract no
Diagram
XML Instance Representation
<...>
<name> id16-type </name> [1]
<description> text256-type </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="id16-with-description-type">
<xs:sequence>
<xs:element name="name" type="id16-type"/>
<xs:element name="description" type="text256-type" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
top

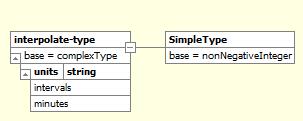

Complex Type: interpolate-type

Super-types: xs:nonNegativeInteger < interpolate-type (by extension)
Sub-types: None
Name interpolate-type
Abstract no
Diagram
XML Instance Representation
<...
units="id16-type (value comes from list: {'minutes'; 'intervals') [1]">
xs:nonNegativeInteger
</...>
Schema Component Representation
<xs:complexType name="interpolate-type">
<xs:simpleContent>
<xs:extension base="xs:nonNegativeInteger">
<xs:attribute name="units" use="required">
<xs:simpleType>
<xs:restriction base="id16-type">
<xs:enumeration value="minutes"/>
<xs:enumeration value="intervals"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
top

Complex Type: latitude-dms-type

Super-types: None
Sub-types: None
Name latitude-dms-type
Abstract no
Diagram
XML Instance Representation
<...>
<degrees> latitude-integer-type </degrees> [1]
<minutes> dms-integer-type </minutes> [1]
<seconds> dms-float-type </seconds> [1]
</...>
Schema Component Representation
<xs:complexType name="latitude-dms-type">
<xs:sequence>
<xs:element name="degrees" type="latitude-integer-type"/>
<xs:element name="minutes" type="dms-integer-type"/>
<xs:element name="seconds" type="dms-float-type"/>
</xs:sequence>
</xs:complexType>
top

Complex Type: longitude-dms-type

Super-types: None
Sub-types: None
Name longitude-dms-type
Abstract no
Diagram
XML Instance Representation
<...>
<degrees> longitude-integer-type </degrees> [1]
<minutes> dms-integer-type </minutes> [1]
<seconds> dms-float-type </seconds> [1]
</...>
Schema Component Representation
<xs:complexType name="longitude-dms-type">
<xs:sequence>
<xs:element name="degrees" type="longitude-integer-type"/>
<xs:element name="minutes" type="dms-integer-type"/>
<xs:element name="seconds" type="dms-float-type"/>
</xs:sequence>
</xs:complexType>
top

Complex Type: office-type

Super-types: None
Sub-types: None
Name office-type
Abstract no
Diagram
XML Instance Representation
<...
id="id16-type [0..1]">
<name> office-name-type </name> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="office-type">
<xs:sequence>
<xs:element name="name" type="office-name-type"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="id" type="id16-type" use="optional"/>
</xs:complexType>
top

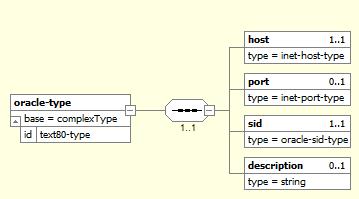

Complex Type: oracle-type

Super-types: None
Sub-types: None
Name oracle-type
Abstract no
Diagram
XML Instance Representation
<...
id="text80-type [0..1]">
<host> inet-host-type </host> [1]
<port> inet-port-type </port> [0..1]
<sid> oracle-sid-type </sid> [1]
<description> xs:string </description> [0..1]
</...>
Schema Component Representation
<xs:complexType name="oracle-type">
<xs:sequence>
<xs:element name="host" type="inet-host-type"/>
<xs:element name="port" type="inet-port-type" maxOccurs="1" minOccurs="0"/>
<xs:element name="sid" type="oracle-sid-type"/>
<xs:element name="description" type="xs:string" maxOccurs="1" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="id" type="text80-type" use="optional"/>
</xs:complexType>
top

Complex Type: stream-location-type

Super-types: None
Sub-types: None
Name stream-location-type
Abstract no
Diagram
XML Instance Representation
<...>
<location> cwms-location-type </location> [1]
<stream> id16-type </stream> [1]
<station
units="id16-type [1]"> [1]
xs:decimal
</station>
<drainage-area
units="id16-type [1]"> [0..1]
<total> xs:decimal </total> [0..1]
<contributing> xs:decimal </contributing> [0..1]
<unregulated> xs:decimal </unregulated> [0..1]
<ungaged> xs:decimal </ungaged> [0..1]
</drainage-area>
</...>
Schema Component Representation
<xs:complexType name="stream-location-type">
<xs:sequence>
<xs:element name="location" type="cwms-location-type"/>
<xs:element name="stream" type="id16-type"/>
<xs:element name="station">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:decimal">
<xs:attribute name="units" type="id16-type" use="required"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="drainage-area" minOccurs="0">
<xs:complexType>
<xs:sequence>
<xs:element name="total" type="xs:decimal" minOccurs="0"/>
<xs:element name="contributing" type="xs:decimal" minOccurs="0"/>
<xs:element name="unregulated" type="xs:decimal" minOccurs="0"/>
<xs:element name="ungaged" type="xs:decimal" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="units" type="id16-type" use="required"/>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
top

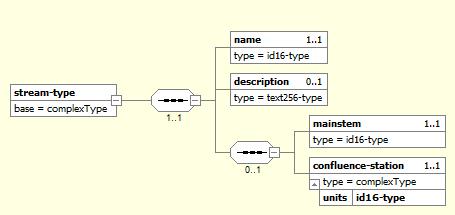

Complex Type: stream-type

Super-types: None
Sub-types: None
Name stream-type
Abstract no
Diagram
XML Instance Representation
<...>
<name> id16-type </name> [1]
<description> text256-type </description> [0..1]
Start Sequence [0..1]
<mainstem> id16-type </mainstem> [1]
<confluence-station
units="id16-type [1]"> [1]
xs:decimal
</confluence-station>
End Sequence
</...>
Schema Component Representation
<xs:complexType name="stream-type">
<xs:sequence>
<xs:element name="name" type="id16-type"/>
<xs:element name="description" type="text256-type" minOccurs="0"/>
<xs:sequence minOccurs="0">
<xs:element name="mainstem" type="id16-type"/>
<xs:element name="confluence-station">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:decimal">
<xs:attribute name="units" type="id16-type" use="required"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:sequence>
</xs:complexType>
top

Complex Type: vertical-datum-info-type

Super-types: None
Sub-types: None
Name vertical-datum-info-type
Abstract no
Diagram
XML Instance Representation
<...
office="id16-type [0..1]"
unit="id16-type [0..1]">
<location> cwms-location-type </location> [0..1]
<native-datum> vertical-datum-type </native-datum> [1]
<local-datum-name> id16-type </local-datum-name> [0..1]
<elevation> opt-double </elevation> [0..1]
<offset> vertical-datum-offset-type </offset> [0..*]
</...>
Schema Component Representation
<xs:complexType name="vertical-datum-info-type">
<xs:sequence>
<xs:element name="location" type="cwms-location-type" minOccurs="0"/>
<-- should be used only with "office" attribute -->
<xs:element name="native-datum" type="vertical-datum-type"/>
<xs:element name="local-datum-name" type="id16-type" minOccurs="0"/>
<xs:element name="elevation" type="opt-double" minOccurs="0"/>
<xs:element name="offset" type="vertical-datum-offset-type" maxOccurs="unbounded" minOccurs="0"/>
</xs:sequence>
<xs:attribute name="office" type="id16-type" use="optional"/>
<-- should be used only wth <location> element -->
<xs:attribute name="unit" type="id16-type"/>
</xs:complexType>
top

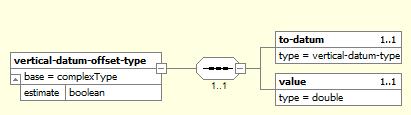

Complex Type: vertical-datum-offset-type

Super-types: None
Sub-types: None
Name vertical-datum-offset-type
Abstract no
Diagram
XML Instance Representation
<...
estimate="xs:boolean [0..1]">
<to-datum> vertical-datum-type </to-datum> [1]
<value> xs:double </value> [1]
</...>
Schema Component Representation
<xs:complexType name="vertical-datum-offset-type">
<xs:sequence>
<xs:element name="to-datum" type="vertical-datum-type"/>
<xs:element name="value" type="xs:double"/>
</xs:sequence>
<xs:attribute name="estimate" type="xs:boolean"/>
</xs:complexType>
top

Simple Type: cwms-base-parameter-type

Super-types: xs:string < cwms-base-parameter-type (by restriction)
Sub-types: None
Name cwms-base-parameter-type
Content
  • Base XSD Type: string
  • pattern = (%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)
Schema Component Representation
<xs:simpleType name="cwms-base-parameter-type">
<xs:restriction base="xs:string">
<xs:pattern value="(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-duration-type

Super-types: xs:string < cwms-duration-type (by restriction)
Sub-types: None
Name cwms-duration-type
Content
  • Base XSD Type: string
  • pattern = (0|(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days)(BOP)?)
Schema Component Representation
<xs:simpleType name="cwms-duration-type">
<xs:restriction base="xs:string">
<xs:pattern value="(0|(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days)(BOP)?)"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-grid-id-type

Super-types: xs:string < cwms-grid-id-type (by restriction)
Sub-types: None
Name cwms-grid-id-type
Content
  • Base XSD Type: string
  • pattern = \s*[^.-]{1,16}(-[^.]{1,32})?\.(HRAP|SHG)\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.(Total|Max|Min|Const|Ave|Inst)\.(0|~?(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days))\.(0|(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days)(BOP)?)\.[^.]{1,32}\s*
Schema Component Representation
<xs:simpleType name="cwms-grid-id-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*[^.-]{1,16}(-[^.]{1,32})?\.(HRAP|SHG)\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.(Total|Max|Min|Const|Ave|Inst)\.(0|~?(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days))\.(0|(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days)(BOP)?)\.[^.]{1,32}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-gridtype-type

Super-types: xs:string < cwms-gridtype-type (by restriction)
Sub-types: None
Name cwms-gridtype-type
Content
  • Base XSD Type: string
  • pattern = (HRAP|SHG)
Schema Component Representation
<xs:simpleType name="cwms-gridtype-type">
<xs:restriction base="xs:string">
<xs:pattern value="(HRAP|SHG)"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-interval-type

Super-types: xs:string < cwms-interval-type (by restriction)
Sub-types: None
Name cwms-interval-type
Content
  • Base XSD Type: string
  • pattern = (0|~?(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days))
Schema Component Representation
<xs:simpleType name="cwms-interval-type">
<xs:restriction base="xs:string">
<xs:pattern value="(0|~?(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days))"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-location-level-id-type

Super-types: xs:string < cwms-location-level-id-type (by restriction)
Sub-types: None
Name cwms-location-level-id-type
Content
  • Base XSD Type: string
  • pattern = \s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.(Total|Max|Min|Const|Ave|Inst)\.[^.]{1,256}\s*
Schema Component Representation
<xs:simpleType name="cwms-location-level-id-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.(Total|Max|Min|Const|Ave|Inst)\.[^.]{1,256}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-location-type

Super-types: xs:string < cwms-location-type (by restriction)
Sub-types: None
Name cwms-location-type
Content
  • Base XSD Type: string
  • pattern = [^.-]{1,16}(-[^.]{1,32})?
Schema Component Representation
<xs:simpleType name="cwms-location-type">
<xs:restriction base="xs:string">
<xs:pattern value="[^.-]{1,16}(-[^.]{1,32})?"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-parameter-type

Super-types: xs:string < cwms-parameter-type (by restriction)
Sub-types: None
Name cwms-parameter-type
Content
  • Base XSD Type: string
  • pattern = (%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?
Schema Component Representation
<xs:simpleType name="cwms-parameter-type">
<xs:restriction base="xs:string">
<xs:pattern value="(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-paramtype-type

Super-types: xs:string < cwms-paramtype-type (by restriction)
Sub-types: None
Name cwms-paramtype-type
Content
  • Base XSD Type: string
  • pattern = (Total|Max|Min|Const|Ave|Inst)
Schema Component Representation
<xs:simpleType name="cwms-paramtype-type">
<xs:restriction base="xs:string">
<xs:pattern value="(Total|Max|Min|Const|Ave|Inst)"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-expression-with-units-type

Super-types: xs:string < cwms-rating-expression-with-units-type (by restriction)
Sub-types: None
Name cwms-rating-expression-with-units-type
Content
  • Base XSD Type: string
  • pattern = \s*(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])*\s*\{\s*(\w|[$%/-]){1,32}(,(\w|[$%/-]){1,32})*;(\w|[$%/-]){1,32}\s*\}\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-expression-with-units-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])*\s*\{\s*(\w|[$%/-]){1,32}(,(\w|[$%/-]){1,32})*;(\w|[$%/-]){1,32}\s*\}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-formula-type

Super-types: xs:string < cwms-rating-formula-type (by restriction)
Sub-types: None
Name cwms-rating-formula-type
Content
  • Base XSD Type: string
  • pattern = \s*(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])*\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-formula-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])(([Ii]\d+)|([+*/%^-]|//)|([Ee]|[Pp][Ii])|([Aa][Bb][Ss]|[Aa]?([Ss][Ii][Nn]|[Cc][Oo][Ss]|[Tt][Aa][Bb])|[Cc][Ee][Ii][Ll]|[Ee][Xx][Pp]|[Ff][Ll][Oo][Oo][Rr]|[Ii][Nn][Vv]|[Ll][Nn]|[Ll][Oo][Gg]|[Nn][Ee][Gg]|[Rr][Oo][Uu][Nn][Dd]|[Ss][Ii][Gg][Nn])|[-+]?[0-9]*\.?[0-9]+([eE][-+]?[0-9]+)?|[() ])*\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-id-type

Super-types: xs:string < cwms-rating-id-type (by restriction)
Sub-types: None
Name cwms-rating-id-type
Content
  • Base XSD Type: string
  • pattern = \s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\.[^.]{1,32}\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-id-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\.[^.]{1,32}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-parameters-type

Super-types: xs:string < cwms-rating-parameters-type (by restriction)
Sub-types: None
Name cwms-rating-parameters-type
Content
  • Base XSD Type: string
  • pattern = \s*(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-parameters-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-spec-type

Super-types: xs:string < cwms-rating-spec-type (by restriction)
Sub-types: None
Name cwms-rating-spec-type
Content
  • Base XSD Type: string
  • pattern = \s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\.[^.]{1,32}\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-spec-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\.[^.]{1,32}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-spec-with-units-type

Super-types: xs:string < cwms-rating-spec-with-units-type (by restriction)
Sub-types: None
Name cwms-rating-spec-with-units-type
Content
  • Base XSD Type: string
  • pattern = \s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\.[^.]{1,32}\s*\{\s*(\w|[$%/-]){1,32}(,(\w|[$%/-]){1,32})*;(\w|[$%/-]){1,32}\s*\}\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-spec-with-units-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\.[^.]{1,32}\s*\{\s*(\w|[$%/-]){1,32}(,(\w|[$%/-]){1,32})*;(\w|[$%/-]){1,32}\s*\}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-template-type

Super-types: xs:string < cwms-rating-template-type (by restriction)
Sub-types: None
Name cwms-rating-template-type
Content
  • Base XSD Type: string
  • pattern = \s*(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-template-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?(,(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?)*;(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.[^.]{1,32}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-rating-units-type

Super-types: xs:string < cwms-rating-units-type (by restriction)
Sub-types: None
Name cwms-rating-units-type
Content
  • Base XSD Type: string
  • pattern = \s*(\w|[$%/-]){1,32}(,(\w|[$%/-]){1,32})*;(\w|[$%/-]){1,32}\s*
Schema Component Representation
<xs:simpleType name="cwms-rating-units-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(\w|[$%/-]){1,32}(,(\w|[$%/-]){1,32})*;(\w|[$%/-]){1,32}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-tsid-type

Super-types: xs:string < cwms-tsid-type (by restriction)
Sub-types: None
Name cwms-tsid-type
Content
  • Base XSD Type: string
  • pattern = \s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.(Total|Max|Min|Const|Ave|Inst)\.(0|~?(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days))\.(0|(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days)(BOP)?)\.[^.]{1,32}\s*
Schema Component Representation
<xs:simpleType name="cwms-tsid-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*[^.-]{1,16}(-[^.]{1,32})?\.(%|Area|Code|Coeff|Con[cd]|Count|Currency|Depth|Dir|Dist|Elev|Energy|Evap(Rate)?|Fish|Flow|Frost|Head|Height|Irrad|Length|Opening|pH|Power|Precip|Pres|Rad|Ratio|Rotation|Speed|SpinRate|Stage|Stor|Temp|Thick|Timing|Travel|Turb[FJN]?|Volt|Volume|Width)(-[^.]{1,32})?\.(Total|Max|Min|Const|Ave|Inst)\.(0|~?(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days))\.(0|(1(Minute|Hour|Day|Week|Month|Year|Decade)|([234568]|1[025]|[23]0)Minutes|([23468]|12)Hours|[23456]Days)(BOP)?)\.[^.]{1,32}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: cwms-unit-type

Super-types: xs:string < cwms-unit-type (by restriction)
Sub-types: None
Name cwms-unit-type
Content
  • Base XSD Type: string
  • pattern = (\w|[$%/-]){1,32}
Schema Component Representation
<xs:simpleType name="cwms-unit-type">
<xs:restriction base="xs:string">
<xs:pattern value="(\w|[$%/-]){1,32}"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: day-of-year-type

Super-types: xs:integer < day-of-year-type (by restriction)
Sub-types: None
Name day-of-year-type
Content
  • Base XSD Type: integer
  • 1 <= value <= 365
Schema Component Representation
<xs:simpleType name="day-of-year-type">
<xs:restriction base="xs:integer">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="365"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dms-float-type

Super-types: xs:decimal < dms-float-type (by restriction)
Sub-types: None
Name dms-float-type
Content
  • Base XSD Type: decimal
  • 0. <= value < 60.
Schema Component Representation
<xs:simpleType name="dms-float-type">
<xs:restriction base="xs:decimal">
<xs:minInclusive value="0."/>
<xs:maxExclusive value="60."/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dms-integer-type

Super-types: xs:nonNegativeInteger < dms-integer-type (by restriction)
Sub-types: None
Name dms-integer-type
Content
  • Base XSD Type: nonNegativeInteger
  • 0 <= value <= 59
Schema Component Representation
<xs:simpleType name="dms-integer-type">
<xs:restriction base="xs:nonNegativeInteger">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="59"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-grid-pathname-type

Super-types: xs:string < dss-grid-pathname-type (by restriction)
Sub-types: None
Name dss-grid-pathname-type
Content
  • Base XSD Type: string
  • pattern = \s*(/[^/]{1,64}){3}(/(\d{2}(JAN|FEB|MAR|APR|MAY|JUN|JUL|AUG|SEP|OCT|NOV|DEC|)\d{4}:([01]\d|2[0-4])[0-5]\d)?){2}/[^/\\]{1,64}/\s*
Schema Component Representation
<xs:simpleType name="dss-grid-pathname-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(/[^/]{1,64}){3}(/(\d{2}(JAN|FEB|MAR|APR|MAY|JUN|JUL|AUG|SEP|OCT|NOV|DEC|)\d{4}:([01]\d|2[0-4])[0-5]\d)?){2}/[^/\\]{1,64}/\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-irregular-ts-store-rule-type

Super-types: xs:string < dss-irregular-ts-store-rule-type (by restriction)
Sub-types: None
Name dss-irregular-ts-store-rule-type
Content
  • Base XSD Type: string
Values'0-delete-insert'
'1-merge'
Schema Component Representation
<xs:simpleType name="dss-irregular-ts-store-rule-type">
<xs:restriction base="xs:string">
<xs:enumeration value="0-delete-insert"/>
<xs:enumeration value="1-merge"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-location-level-pathname-type

Super-types: xs:string < dss-location-level-pathname-type (by restriction)
Sub-types: None
Name dss-location-level-pathname-type
Content
  • Base XSD Type: string
  • pattern = \s*/[^/]{0,64}(/[^/]{1,64}){4}/[^/]{0,64}/\s*
Schema Component Representation
<xs:simpleType name="dss-location-level-pathname-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*/[^/]{0,64}(/[^/]{1,64}){4}/[^/]{0,64}/\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-parameter-type

Super-types: xs:string < dss-parameter-type (by restriction)
Sub-types: None
Name dss-parameter-type
Content
  • Base XSD Type: string
Values'INST-VAL'
'INST-CUM'
'PER-CUM'
'PER-AVER'
'PER-MIN'
'PER-MAX'
Schema Component Representation
<xs:simpleType name="dss-parameter-type">
<xs:restriction base="xs:string">
<xs:enumeration value="INST-VAL"/>
<xs:enumeration value="INST-CUM"/>
<xs:enumeration value="PER-CUM"/>
<xs:enumeration value="PER-AVER"/>
<xs:enumeration value="PER-MIN"/>
<xs:enumeration value="PER-MAX"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-pathname-type

Super-types: xs:string < dss-pathname-type (by restriction)
Sub-types: None
Name dss-pathname-type
Content
  • Base XSD Type: string
  • pattern = \s*/([^/]{0,64}/){6}\s*
Schema Component Representation
<xs:simpleType name="dss-pathname-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*/([^/]{0,64}/){6}\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-rating-pathname-type

Super-types: xs:string < dss-rating-pathname-type (by restriction)
Sub-types: None
Name dss-rating-pathname-type
Content
  • Base XSD Type: string
  • pattern = \s*/[^/]{0,64}/[^/]{1,64}/([^/]*[^/-]+-[^/-]+[^/]*|[^/,;]+(,[^/,;]+)*;[^/,;]+)(/[^/]{0,64}){3}/\s*
Documentation Normal paired-data pathname = //location/ind_param-dep_param/date//version/ Normal CWMS rating pathname = /office/location/ind_param(,ind_param)*;dep_param//template_ver/spec_ver/
Schema Component Representation
<xs:simpleType name="dss-rating-pathname-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*/[^/]{0,64}/[^/]{1,64}/([^/]*[^/-]+-[^/-]+[^/]*|[^/,;]+(,[^/,;]+)*;[^/,;]+)(/[^/]{0,64}){3}/\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-regular-ts-store-rule-type

Super-types: xs:string < dss-regular-ts-store-rule-type (by restriction)
Sub-types: None
Name dss-regular-ts-store-rule-type
Content
  • Base XSD Type: string
Values'0-replace-all'
'1-replace-missing-values-only'
'2-replace-all-create'
'3-replace-all-delete'
'4-replace-with-non-missing'
Schema Component Representation
<xs:simpleType name="dss-regular-ts-store-rule-type">
<xs:restriction base="xs:string">
<xs:enumeration value="0-replace-all"/>
<xs:enumeration value="1-replace-missing-values-only"/>
<xs:enumeration value="2-replace-all-create"/>
<xs:enumeration value="3-replace-all-delete"/>
<xs:enumeration value="4-replace-with-non-missing"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-ts-pathname-type

Super-types: xs:string < dss-ts-pathname-type (by restriction)
Sub-types: None
Name dss-ts-pathname-type
Content
  • Base XSD Type: string
  • pattern = \s*/[^/]{0,64}(/[^/]{1,64}){2}/(\d{2}(JAN|FEB|MAR|APR|MAY|JUN|JUL|AUG|SEP|OCT|NOV|DEC|)\d{4})?/(~?(([123456]|1[025]|[23]0)MIN|([123468]|12)HOUR|1(DAY|WEEK|MON|YEAR)|(SEMI-|TRI-)MONTH)|IR-(DAY|MONTH|YEAR|DECADE|CENTURY))/[^/]{0,64}/\s*
Schema Component Representation
<xs:simpleType name="dss-ts-pathname-type">
<xs:restriction base="xs:string">
<xs:pattern value="\s*/[^/]{0,64}(/[^/]{1,64}){2}/(\d{2}(JAN|FEB|MAR|APR|MAY|JUN|JUL|AUG|SEP|OCT|NOV|DEC|)\d{4})?/(~?(([123456]|1[025]|[23]0)MIN|([123468]|12)HOUR|1(DAY|WEEK|MON|YEAR)|(SEMI-|TRI-)MONTH)|IR-(DAY|MONTH|YEAR|DECADE|CENTURY))/[^/]{0,64}/\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: dss-units-type

Super-types: xs:string < dss-units-type (by restriction)
Sub-types: None
Name dss-units-type
Content
  • Base XSD Type: string
  • length <= 16
Schema Component Representation
<xs:simpleType name="dss-units-type">
<xs:restriction base="xs:string">
<xs:maxLength value="16"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: empty

Super-types: xs:string < empty (by restriction)
Sub-types: None
Name empty
Content
  • Base XSD Type: string
  • length = 0
Schema Component Representation
<xs:simpleType name="empty">
<xs:restriction base="xs:string">
<xs:length value="0"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: endtimespec

Super-types: xs:string < endtimespec (by restriction)
Sub-types: None
Name endtimespec
Content
  • Base XSD Type: string
  • pattern = \s*(-?\d{4}-\d{2}-\d{2}T\d{2}:\d{2}(:\d{2}([.]\d+)?)?([-+]\d{2}:\d{2}|Z)?|$(start|forecast|simulation|end)-time)\s*
Schema Component Representation
<xs:simpleType name="endtimespec">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(-?\d{4}-\d{2}-\d{2}T\d{2}:\d{2}(:\d{2}([.]\d+)?)?([-+]\d{2}:\d{2}|Z)?|$(start|forecast|simulation|end)-time)\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: file-pathname-type

Super-types: xs:string < file-pathname-type (by restriction)
Sub-types: None
Name file-pathname-type
Content
  • Base XSD Type: string
  • pattern = ([a-zA-Z]:|(//|\\\\)([^/\\]+|[$][a-zA-Z0-9_]+))?[/\\]?([^/\\]+|[$][a-zA-Z0-9_]+)([/\\]([^/\\]+|[$][a-zA-Z0-9_]+))*
Schema Component Representation
<xs:simpleType name="file-pathname-type">
<xs:restriction base="xs:string">
<xs:pattern value="([a-zA-Z]:|(//|\\\\)([^/\\]+|[$][a-zA-Z0-9_]+))?[/\\]?([^/\\]+|[$][a-zA-Z0-9_]+)([/\\]([^/\\]+|[$][a-zA-Z0-9_]+))*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: horizontal-datum-type

Super-types: xs:string < horizontal-datum-type (by restriction)
Sub-types: None
Name horizontal-datum-type
Content
  • Base XSD Type: string
Values'NAD-27'
'WGS-84/NAD-83'
'OTHER'
'UNKNOWN'
Schema Component Representation
<xs:simpleType name="horizontal-datum-type">
<xs:restriction base="xs:string">
<xs:enumeration value="NAD-27"/>
<xs:enumeration value="WGS-84/NAD-83"/>
<xs:enumeration value="OTHER"/>
<xs:enumeration value="UNKNOWN"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: id16-type

Super-types: xs:string < id16-type (by restriction)
Sub-types: None
Name id16-type
Content
  • Base XSD Type: string
  • length <= 16
Schema Component Representation
<xs:simpleType name="id16-type">
<xs:restriction base="xs:string">
<xs:maxLength value="16"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: id32-type

Super-types: xs:string < id32-type (by restriction)
Sub-types: None
Name id32-type
Content
  • Base XSD Type: string
  • length <= 32
Schema Component Representation
<xs:simpleType name="id32-type">
<xs:restriction base="xs:string">
<xs:maxLength value="32"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: inet-host-type

Super-types: xs:string < inet-host-type (by restriction)
Sub-types: None
Name inet-host-type
Content
  • Base XSD Type: string
  • pattern = (\d{1,3}[.]){3}\d{1,3}|([a-fA-F0-9]{1,4}:){7}[a-fA-F0-9]{1,4}|([a-fA-F0-9]{1,4}:){1,7}:|:(:[a-fA-F0-9]{1,4}){1,7}|([a-fA-F0-9]{1,4}:){1,6}(:[a-fA-F0-9]{1,4}){1}|([a-fA-F0-9]{1,4}:){1,5}(:[a-fA-F0-9]{1,4}){1,2}|([a-fA-F0-9]{1,4}:){1,4}(:[a-fA-F0-9]{1,4}){1,3}|([a-fA-F0-9]{1,4}:){1,3}(:[a-fA-F0-9]{1,4}){1,4}|([a-fA-F0-9]{1,4}:){1,2}(:[a-fA-F0-9]{1,4}){1,5}|([a-fA-F0-9]{1,4}:){1}(:[a-fA-F0-9]{1,4}){1,6}|([a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z-][a-zA-Z0-9-]*[a-zA-Z0-9][.])*[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z-][a-zA-Z0-9-]*[a-zA-Z0-9]
  • length <= 255
Schema Component Representation
<xs:simpleType name="inet-host-type">
<xs:restriction base="xs:string">
<xs:pattern value="(\d{1,3}[.]){3}\d{1,3}|([a-fA-F0-9]{1,4}:){7}[a-fA-F0-9]{1,4}|([a-fA-F0-9]{1,4}:){1,7}:|:(:[a-fA-F0-9]{1,4}){1,7}|([a-fA-F0-9]{1,4}:){1,6}(:[a-fA-F0-9]{1,4}){1}|([a-fA-F0-9]{1,4}:){1,5}(:[a-fA-F0-9]{1,4}){1,2}|([a-fA-F0-9]{1,4}:){1,4}(:[a-fA-F0-9]{1,4}){1,3}|([a-fA-F0-9]{1,4}:){1,3}(:[a-fA-F0-9]{1,4}){1,4}|([a-fA-F0-9]{1,4}:){1,2}(:[a-fA-F0-9]{1,4}){1,5}|([a-fA-F0-9]{1,4}:){1}(:[a-fA-F0-9]{1,4}){1,6}|([a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z-][a-zA-Z0-9-]*[a-zA-Z0-9][.])*[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z-][a-zA-Z0-9-]*[a-zA-Z0-9]"/>
<xs:maxLength value="255"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: inet-port-type

Super-types: xs:decimal < inet-port-type (by restriction)
Sub-types: None
Name inet-port-type
Content
  • Base XSD Type: decimal
  • 1 <= value <= 65535
Schema Component Representation
<xs:simpleType name="inet-port-type">
<xs:restriction base="xs:decimal">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="65535"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: latitude-decimal-type

Super-types: xs:decimal < latitude-decimal-type (by restriction)
Sub-types: None
Name latitude-decimal-type
Content
  • Base XSD Type: decimal
  • -90.0 <= value <= 90.0
Schema Component Representation
<xs:simpleType name="latitude-decimal-type">
<xs:restriction base="xs:decimal">
<xs:minInclusive value="-90.0"/>
<xs:maxInclusive value="90.0"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: latitude-integer-type

Super-types: xs:integer < latitude-integer-type (by restriction)
Sub-types: None
Name latitude-integer-type
Content
  • Base XSD Type: integer
  • -90 <= value <= 90
Schema Component Representation
<xs:simpleType name="latitude-integer-type">
<xs:restriction base="xs:integer">
<xs:minInclusive value="-90"/>
<xs:maxInclusive value="90"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: longitude-decimal-type

Super-types: xs:decimal < longitude-decimal-type (by restriction)
Sub-types: None
Name longitude-decimal-type
Content
  • Base XSD Type: decimal
  • -180.0 <= value <= 180.0
Schema Component Representation
<xs:simpleType name="longitude-decimal-type">
<xs:restriction base="xs:decimal">
<xs:minInclusive value="-180.0"/>
<xs:maxInclusive value="180.0"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: longitude-integer-type

Super-types: xs:integer < longitude-integer-type (by restriction)
Sub-types: None
Name longitude-integer-type
Content
  • Base XSD Type: integer
  • -180 <= value <= 180
Schema Component Representation
<xs:simpleType name="longitude-integer-type">
<xs:restriction base="xs:integer">
<xs:minInclusive value="-180"/>
<xs:maxInclusive value="180"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: office-name-type

Super-types: xs:string < office-name-type (by restriction)
Sub-types: None
Name office-name-type
Content
  • Base XSD Type: string
  • length <= 80
Schema Component Representation
<xs:simpleType name="office-name-type">
<xs:restriction base="xs:string">
<xs:maxLength value="80"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: opt-double

Super-types: None
Sub-types: None
Name opt-double
Content
  • Union of following types:
Schema Component Representation
<xs:simpleType name="opt-double">
<xs:union memberTypes="xs:double empty"/>
</xs:simpleType>
top

Simple Type: oracle-sid-type

Super-types: xs:string < oracle-sid-type (by restriction)
Sub-types: None
Name oracle-sid-type
Content
  • Base XSD Type: string
  • length <= 64
Schema Component Representation
<xs:simpleType name="oracle-sid-type">
<xs:restriction base="xs:string">
<xs:maxLength value="64"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: oracle-ts-store-rule-type

Super-types: xs:string < oracle-ts-store-rule-type (by restriction)
Sub-types: None
Name oracle-ts-store-rule-type
Content
  • Base XSD Type: string
Values'replace-with-non-missing'
'replace-all'
'replace-missing-values-only'
'do-not-replace'
'delete-insert'
Schema Component Representation
<xs:simpleType name="oracle-ts-store-rule-type">
<xs:restriction base="xs:string">
<xs:enumeration value="replace-with-non-missing"/>
<xs:enumeration value="replace-all"/>
<xs:enumeration value="replace-missing-values-only"/>
<xs:enumeration value="do-not-replace"/>
<xs:enumeration value="delete-insert"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: starttimespec

Super-types: xs:string < starttimespec (by restriction)
Sub-types: None
Name starttimespec
Content
  • Base XSD Type: string
  • pattern = \s*(-?\d{4}-\d{2}-\d{2}T\d{2}:\d{2}(:\d{2}([.]\d+)?)?([-+]\d{2}:\d{2}|Z)?|$(lookback|start|forecast|simulation)-time)\s*
Schema Component Representation
<xs:simpleType name="starttimespec">
<xs:restriction base="xs:string">
<xs:pattern value="\s*(-?\d{4}-\d{2}-\d{2}T\d{2}:\d{2}(:\d{2}([.]\d+)?)?([-+]\d{2}:\d{2}|Z)?|$(lookback|start|forecast|simulation)-time)\s*"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: text256-type

Super-types: xs:string < text256-type (by restriction)
Sub-types: None
Name text256-type
Content
  • Base XSD Type: string
  • length <= 256
Schema Component Representation
<xs:simpleType name="text256-type">
<xs:restriction base="xs:string">
<xs:maxLength value="256"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: text40-type

Super-types: xs:string < text40-type (by restriction)
Sub-types: None
Name text40-type
Content
  • Base XSD Type: string
  • length <= 40
Schema Component Representation
<xs:simpleType name="text40-type">
<xs:restriction base="xs:string">
<xs:maxLength value="40"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: text512-type

Super-types: xs:string < text512-type (by restriction)
Sub-types: None
Name text512-type
Content
  • Base XSD Type: string
  • length <= 512
Schema Component Representation
<xs:simpleType name="text512-type">
<xs:restriction base="xs:string">
<xs:maxLength value="512"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: text80-type

Super-types: xs:string < text80-type (by restriction)
Sub-types: None
Name text80-type
Content
  • Base XSD Type: string
  • length <= 80
Schema Component Representation
<xs:simpleType name="text80-type">
<xs:restriction base="xs:string">
<xs:maxLength value="80"/>
<xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: time-zone-name-type

Super-types: xs:string < time-zone-name-type (by restriction)
Sub-types: None
Name time-zone-name-type
Content
  • Base XSD Type: string
  • length <= 28
Schema Component Representation
<xs:simpleType name="time-zone-name-type">
<xs:restriction base="xs:string">
<xs:maxLength value="28"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: time-zone-usage-type

Super-types: xs:string < time-zone-usage-type (by restriction)
Sub-types: None
Name time-zone-usage-type
Content
  • Base XSD Type: string
Values'Standard'
'Daylight'
'Local'
Schema Component Representation
<xs:simpleType name="time-zone-usage-type">
<xs:restriction base="xs:string">
<xs:enumeration value="Standard"/>
<xs:enumeration value="Daylight"/>
<xs:enumeration value="Local"/>
</xs:restriction>
</xs:simpleType>
top

Simple Type: vertical-datum-type

Super-types: xs:string < vertical-datum-type (by restriction)
Sub-types: None
Name vertical-datum-type
Content
  • Base XSD Type: string
  • pattern = NGVD[ -]?29|NAVD[ -]?88|OTHER|UNKNOWN
Schema Component Representation
<xs:simpleType name="vertical-datum-type">
<xs:restriction base="xs:string">
<xs:pattern value="NGVD[ -]?29|NAVD[ -]?88|OTHER|UNKNOWN"/>
</xs:restriction>
</xs:simpleType>
top

Legend

Complex Type:

Schema Component Type

AusAddress

Schema Component Name
Super-types: Address < AusAddress (by extension)
Sub-types:
  • QLDAddress (by restriction)
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
Name AusAddress
Abstract no
The table above displays the properties of this schema component.
XML Instance Representation
<... country="Australia" >
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice [1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1] ?
</...>

The XML Instance Representation table above shows the schema component's content as an XML instance.

Schema Component Representation
<complexType name="AusAddress">
<complexContent>
<extension base="Address">
<sequence>
<element name="state" type="AusStates"/>
<element name="postcode">
<simpleType>
<restriction base="string">
<pattern value="[1-9][0-9]{3}"/>
</restriction>
</simpleType>
</element>
</sequence>
<attribute name="country" type="string" fixed="Australia"/>
</extension>
</complexContent>
</complexType>
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
top

Glossary

Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.

All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.

Choice Model Group Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.

Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.

Disallowed Substitutions (Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.

Key Constraint Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.

Nillable (Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.

Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.

Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.

Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.

Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.

Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).

Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.

Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.

Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.

Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.

Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

top

Generated by xs3p. Last modified:
