Defining a System Storage Balance

To define the System Storage Balance for the reservoirs in your reservoir system:

• Select New from the SystemBalance menu of the Reservoir System Editor. The New System Balance dialog will open ("Figure: New System Storage Balance for Reservoir System").

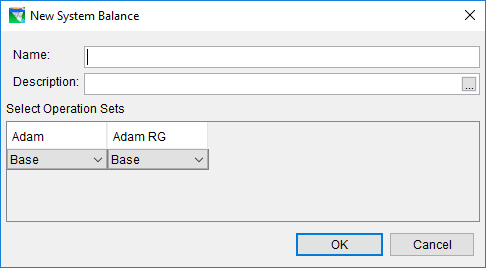

  Figure: New System Storage Balance for Reservoir System



• Enter a Name and Description for the System Storage Balance.
• Below the Description area, you will see the names of the reservoirs you have selected for your system. Below the name of each reservoir is a dropdown list of the Operation Sets available for that reservoir. Click on the arrow to access the list for each reservoir and then select an operation set that contains the system operation rule(s).
• Click OK to close the New System Balance dialog.
• You must now define at least one Reservoir System Zone.
