The MFP Summary dialog displays information regarding the MFP portion of the forecast run. The report displays the location and name of the file, which contains the MFP Summary. In addition, the report displays the name of the forecast run, the time window used, the date and time of the execution of the MFP model alternative, and the creation of the precipitation grids for observed and future.

To view the MFP Summary:

  1. Within the Modeling tab in the Watershed Pane, select an MFP alternative from your active forecast.
  2. Right-click on the MFP alternative and click on the summary you wish to view. The MFP Summary dialog will open.

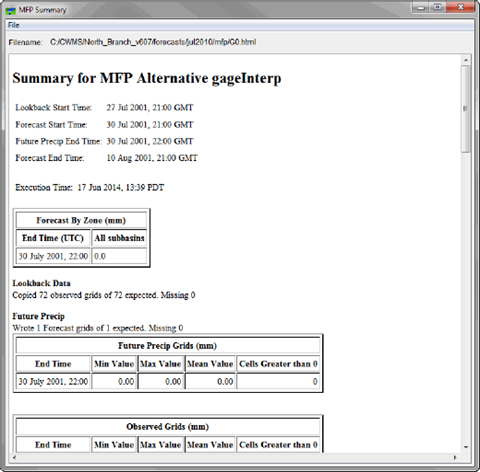

    MFP Summary Dialog

In the MFP Summary example shown above, the MFP alternative gageInterp is shown. The summary reports the sequence of precipitation depths entered by zone and summaries of each grid used in the forecast. Summaries include the maximum, minimum, and average precipitation depth values and the number of cells in the grid showing precipitation depths greater than zero. Note that the precipitation depths shown in this log file are given in millimeters, regardless of the unit system of the watershed.
