To link the model alternatives, complete the following:

  1. From the Setup module, open the Model Linking Editor by selecting Model Linking from the Models menu.

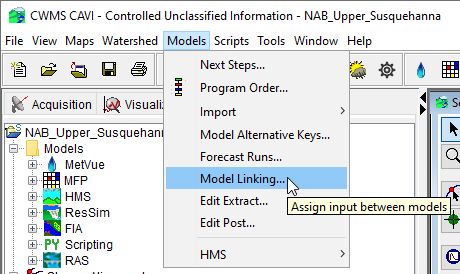

    Setup Tab - Models Menu
  2. Select the forecast run you wish to configure from the Forecast Run drop-down list. Then select a model alternative from the Model Requiring Input drop-down list. In the example below, the MetVue-NexradQPF model alternative for the metvue-summer-FC-unsteady forecast run was selected.

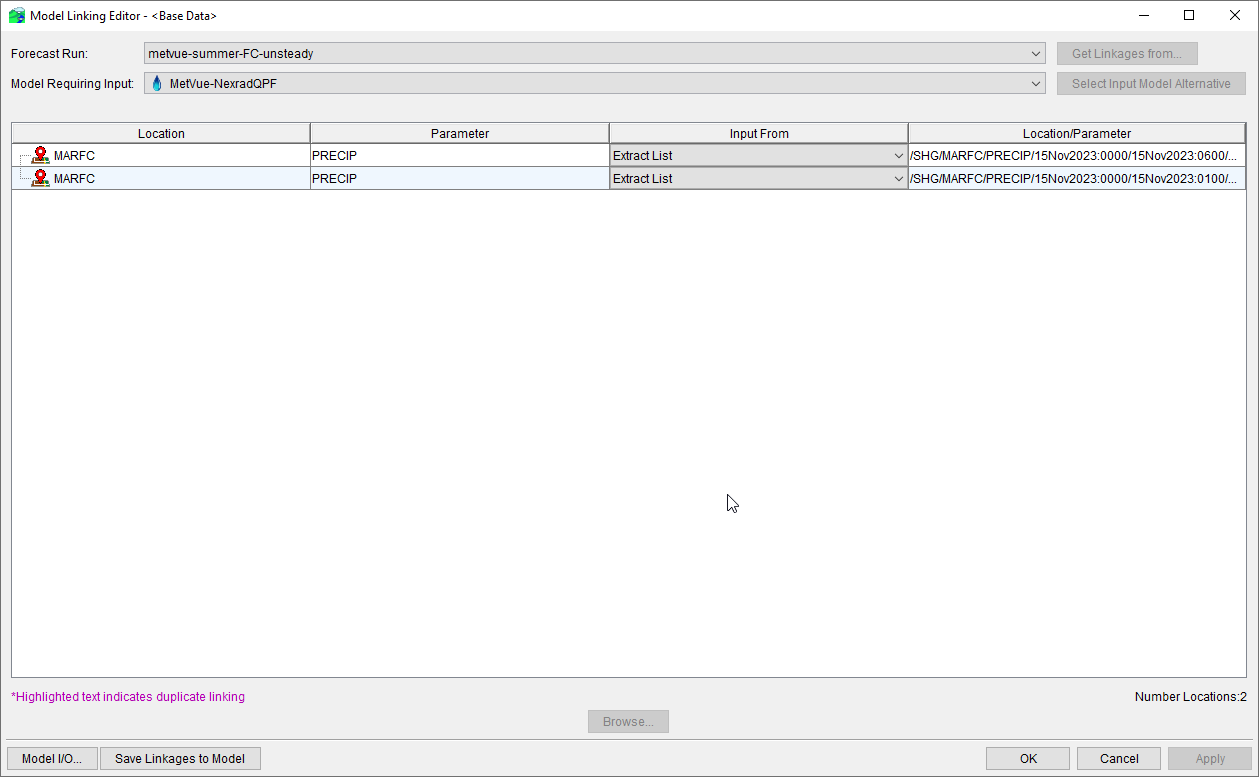

    Model Linking Editor Dialog
  3. In the Model Linking Editor table, specify the Input From for each row as either a model alternative or Extract List. In the example shown below for an HEC-ResSim model alternative, the computed flows were linked to the HEC-HMS model alternative, while the observed flows and elevations were linked to the Extract List.

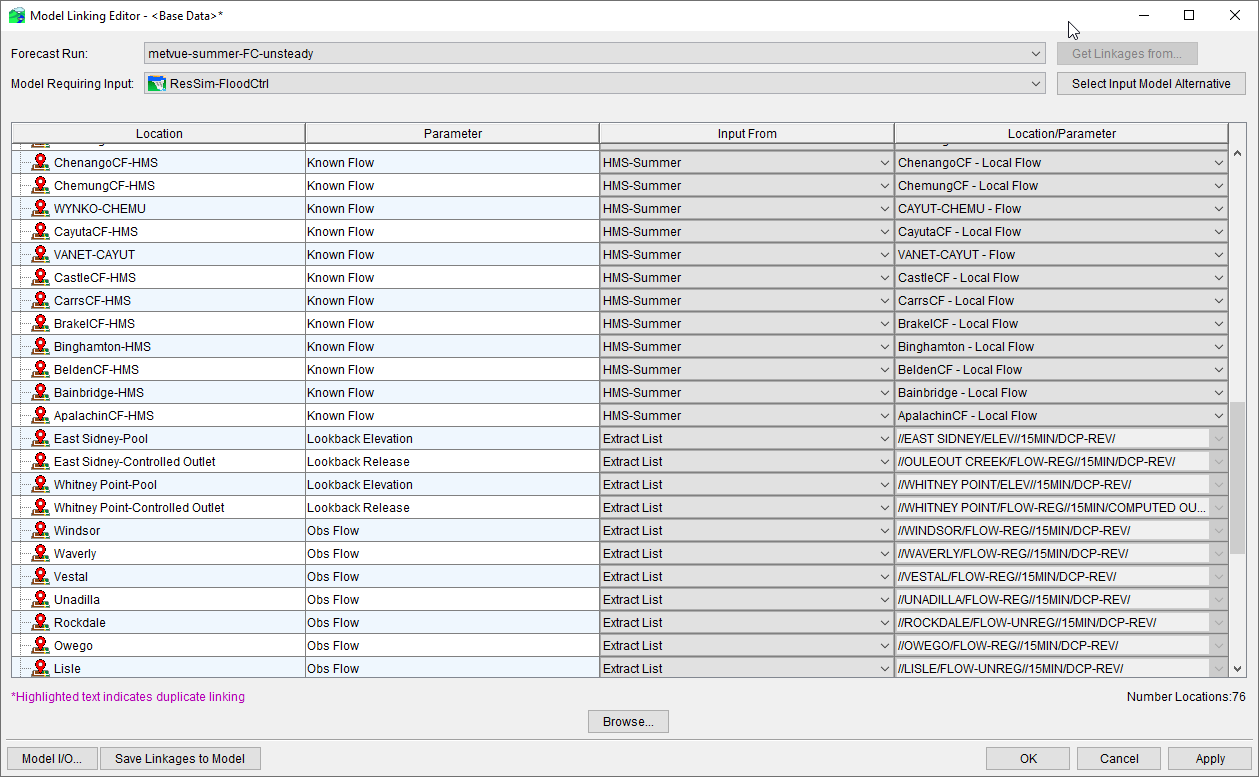

    Model Linking Editor Dialog - HEC-ResSim Model Alternative Example
  4. For each row with an Input From specified with a model alternative, specify the Location/Parameter of the required input. CWMS will try to choose the inputs based on the location/parameter names in each of the models, but you should verify that the linking is correct. You can select the model inputs from the drop-down list in the Location/Parameter column or by using the Browse button to open the Select Source Data Location dialog.

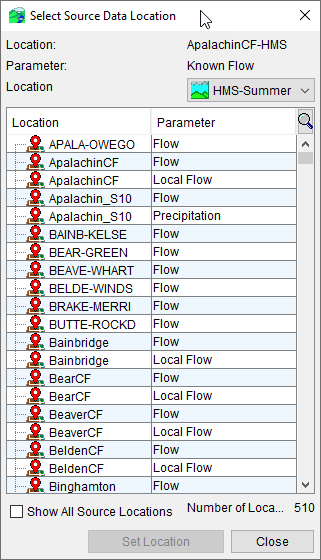

    Select Source Data Location Dialog
  5. Repeat steps 2 through 4 for each model alternative in the Model Requiring Input drop-down list.
  6. Repeat all steps for each Forecast Run you wish to configure.
  7. Click Apply to save your changes, then click OK to close the dialog.
