The KiWIS Time Series Record Chooser dialog allows you to browse the WISKI database to view and select data to use for the extract and post groups. The features supported for the KiWIS data are discussed in the following sections.
Filtering KiWIS Time Series Records
KiWIS time series data can be filtered using pathname parts or by searching for the whole pathname.
To search the KiWIS data using pathname parts:
From KiWIS Time Series Record Chooser dialog, click Search pathnames by parts from the View menu.
The Search By Parts filter lists will display above the table.
Using the Search By Parts drop-down lists, select the record parts you would like to search on. The table will update with each filter list selection.
To search the KiWIS data using pathname parts:
From KiWIS Time Series Record Chooser dialog, click Search pathnames by string from the View menu.

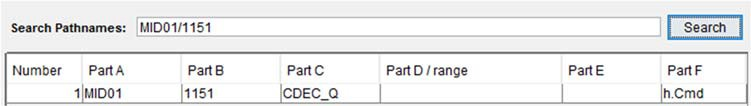

Enter the KiWIS pathname you are searching for in the Search Pathnames box displayed about the table. You do not need to enter the whole pathname. Click Search, and the table will filter the pathnames based on the string you entered.
Plotting KiWIS Time Series Records
KiWIS data can be viewed in time series plots from the KiWIS Time Series Record Chooser dialog. Select a record, and from the toolbar click . A Plot dialog will open, displaying the selected KiWIS data in a plot.
Tabulating KiWIS Time Series Records
KiWIS data can be viewed in tabular form from the KiWIS Time Series Record Chooser dialog. Select a record, and from the toolbar click . A Tabulate dialog will open, displaying the selected KiWIS data in a tabular form.
