Setup Module

In the Setup Module, from the Reports menu there are several reports that are available that display information about the watershed elements. To print these reports, from the File menu of the report window, click Print, and the Properties dialog opens. See Tables for further details on the printing these reports.

Modeling Module

In the Modeling Module, from the Reports tab there are several reports that provide information by model about the active forecast run. Modeling Module and HEC-RTS Forecasts describe the available reports in detail.

Results

When a forecast run is selected, you can view the Extract and Post Reports choosing them from the Forecast menu Log secondary menu options. You can open and print the extract report (Figure 1). Choose Print from the File menu. See Working with Plots for further details about printing.

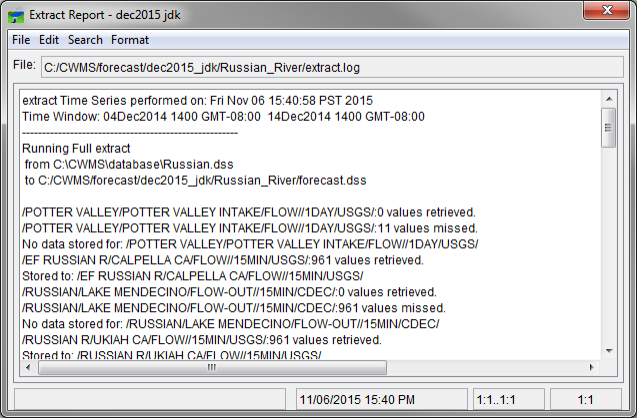

Figure 1 Extract Report

Forecast Run

When a forecast run is selected you can choose to view the log file from the Reports tab in the Modeling Module. Click Extract Log and a log extract report opens displaying the report (Figure 1). You can print this report by clicking Print from the File menu. See Working with Plots for further details about printing.

HEC-ResSim

All of the HEC-ResSim reports are printable, and you can export the reports to an ASCII text file. To print HEC-ResSim reports, from the File menu of a HEC-ResSim report, click Print, and the Properties dialog opens. See Tables for further details on printing these reports.

HEC-RAS

The HEC-RAS reports can be copied to the clipboard and are printable. To copy to the clipboard, choose Copy Plot to Clipboard or Copy Values to Clipboard from the File menu. To print HEC-RAS reports, from the File menu of a HEC-RAS report, click Print, and the Print Options dialog (Figure 2) opens.

Figure 2 Print Options Dialog - HEC-RAS

From this Print Options dialog, you can set up the format of the report for printing.

Following is a list of the available print options:

  • Setup: Click Setup, and the Print Setup dialog (Figure 3) opens. From the Print Setup dialog, you can select a printer and change the printer properties, you can change the paper size and source, and you can set the orientation.
    Figure 3 Page Setup Dialog - HEC-RAS
  • Orientation: As with the Print Setup dialog, you set the orientation using the Print Options dialog (Figure 3). To set the orientation, select Portrait or Landscape from the Orientation panel. By default, the pages are printed in Portrait.
  • Margins: The default margin settings are displayed in the Margins panel of the Page Setup dialog. To set the margins, from the Print Options dialog (Figure 2), click Set Margins, and the Printer Margins dialog (Figure 4) opens. From the Printer Margins dialog, you can adjust the left, right, top, and bottom margins.
    Figure 4 Printer Margins Dialog - HEC-RAS
  • Additional Options: From the Additional Options panel in Figure 2, you can choose to Print Grey Headings, Print Grid Lines, include Page Numbers, and set the Starting Page.
  • Table Options: From the Table Options panel in Figure 2, you set the Max Font Size and choose if you want to print the Entire Table or a Selected Range of the table.

HEC-FIA

The HEC-FIA Result Reports are printable, and you can export the reports to an ASCII text file. From the HEC-FIA reports, click Print, the Properties dialog will open. See Tables for further details on printing these reports. To export to an ASCII text file, click Save To File and the Table Export Options dialog will open. See Tables for further details on exporting these reports.
