The Meteorological Dataset Editor (bottom figure) enables the user to identify one meteorological station, or group of stations, and to specify the atmospheric variables measured at each station. Each meteorological dataset must have at least one met station and the following parameters for each met station: atmospheric pressure, air temperature, humidity, shortwave radiation, cloudiness, and wind speed. The following sections provide an overview of the Meteorological Dataset Editor (bottom figure) including the menu command options.
To open the Meteorological Dataset Editor (bottom figure), from the HEC-ResSim main window (Figure 3.1), from the Water Quality module (Figure 3.1), from the Water Quality menu (first figure below), click Meteorological Data.

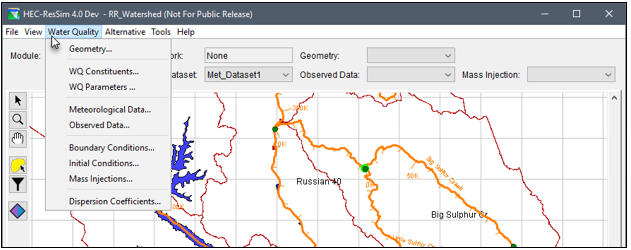

Figure 3.2-Water Quality Module – Water Quality Menu – Meteorological Data Command
Figure 3.3-Meteorological Dataset Editor – View Selection Tree by Station – View Station Data by Stacked Plot – Example
