The WQ Constituent Set Editor (Figure 5.1) enables the user to define the water quality state variables to include in the water quality model. From the editor the user defines the water quality constituents from the constituent libraries. Refer to Section 5.2 for instructions on creating the WQ constituent set, and to Section 5.3 for a description of how to add and define water quality constituents.

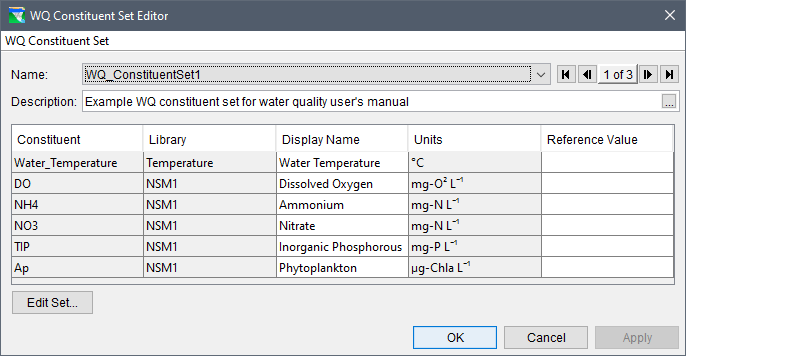

Figure 5.1 – Water Quality (WQ) Constituent Set Editor – Example Completed
To open the WQ Constituent Set Editor (Figure 5.1), from the HEC-ResSim main window (Figure 5.2), from the Water Quality module, from the Water Quality menu (Figure 5.2), click WQ Constituents. The WQ Constituent Set Editor opens (Figure 5.1).

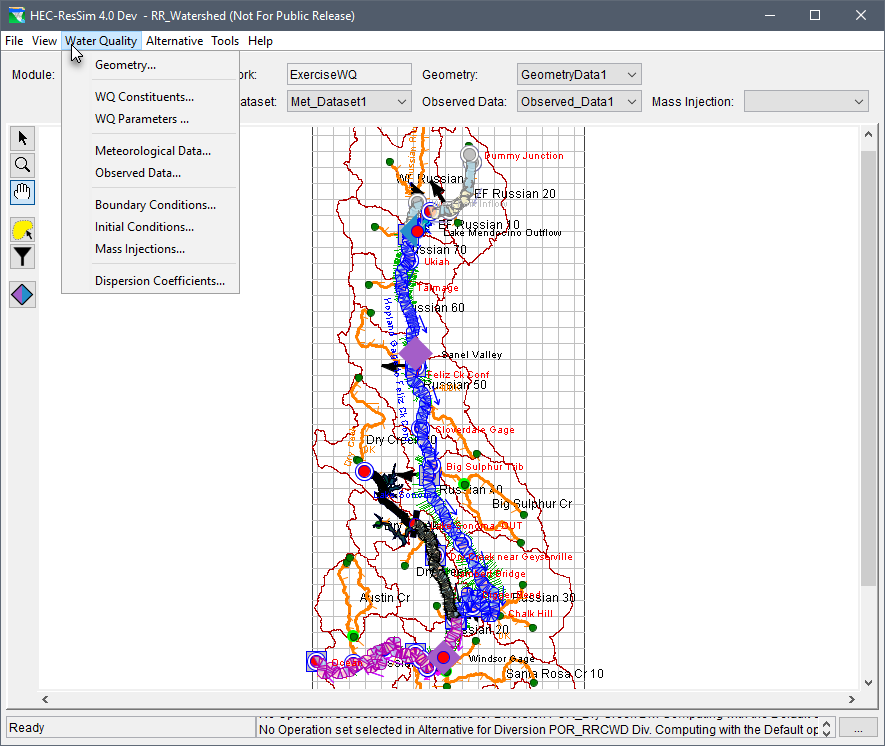

Figure 5.2 – Water Quality Module – Water Quality Menu – WQ Constituents Command
