# Introduction

The Temperature Index (TI) snowmelt method was the first snowmelt method included in HEC-HMS. Information on the Temperature Index snowmelt method can be found in the HEC-HMS User's Manual and the HEC-HMS Technical Reference Manual

The following parameters are required to use this method:

• PX Temperature
• Base Temperature
• ATI-Coldrate Coefficient
• Dry Melt Rate
• Rain Rate Limit
• Wet Melt Rate
• Cold Limit
• Ground Melt Rate
• Liquid Water Capacity

In this tutorial, a parameter sensitivity analysis will be performed using the Uncertainy Analysis compute option in HEC-HMS and a regression analysis in Microsoft Excel. In evaluating parameter sensitivity, we are trying to answer the following questions:

• Which parameters play the largest role in the outputs of interest?
• Which parameters should be investigated (and uncertainty reduced) in future efforts?

This tutorial will evaluate Temperature Index snowmelt parameter sensitivity in a continuous simulation, spanning a water year.  The following tutorial evaluates Temperature Index snowmelt parameter sensitivity in an event simulation: tutorial coming soon!

# Study Area

The Swamp Angel Study Plot (SASP) is located in the San Juan Mountains in southwestern Colorado. SASP is located at an elevation of 11,060 ft (3,370 m) and is located in meadow sheltered by the surrounding terrain and subalpine forest. The location of SASP allows for snowpack and precipitation measurements under minimal wind influence. SASP was used in the Earth System Model-Snow Model Intercomparison Project (ESM-SnowMIP). ESM SnowMIP is an international modeling effort that evaluates snow modeling schemes (Krinner et al. 2018).

For this tutorial, the study plot is treated as a point location. A simple HEC-HMS model with a single subbasin element was developed. The study plot has an area of 0.22 acres (0.0009 square kilometers).

# Finish Model Setup

## Create a Meteorologic Model

Before performing a parameter sensitivity analysis, a meteorologic model must be created. Boundary conditions that are required to use the Temperature Index snowmelt method include:

• Precipitation
• Air Temperature

Meteorological data used in this tutorial was obtained from the ESM SnowMIP data repository

2. Start HEC-HMS (version 4.11 or newer) and open the SwampAngel project.
3. Expand the Basin Model folder in the Watershed Explorer and select the SwampAngel basin model. Notice that the basin model contains a single subbasin named SASP.
4. Create a Meteorologic Model by selecting Components | Meteorologic Model Manager. Click the New... button. Name the meteorologic model WY2006 and click the Create button.
5. Close the Meteorologic Model Manager window.
6. Expand the Meteorologic Model folder in the Watershed Explorer and select the InSitu meteorologic model.
7. From the Component Editor, select the following:
• Unit System: U.S. Customary
• Shortwave: --None--
• Longwave: --None--
• Precipitation: Specified Hyetograph
• Temperature: Specified Thermograph
• Windspeed: --None--
• Pressure: --None--
• Dew Point: --None--
• Evapotranspiration: --None--
• Replace Missing: Set To Default

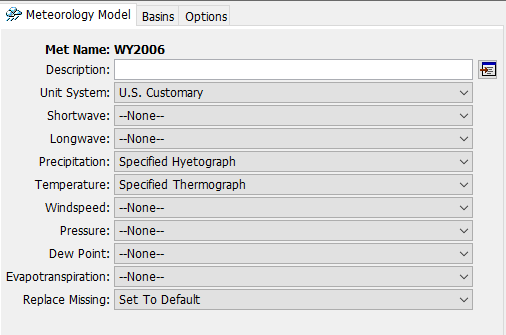

The Meteorologic Model component editor should appear as in the figure below.

8. Within the Meteorologic Model Component Editor, navigate to the Basins tab. Under the Include Subbasins header, select Yes from the drop-down menu to link the SwampAngel_TI Basin Model to the WY2006 meteorologic model.

9. Select the Specified Hyetograph from the Watershed Explorer. Under the Gage header, select Precipitation from the drop-down menu.
10. Select the Specified Thermograph from the Watershed Explorer. Under the Gage header, select AirTemperature from the drop-down menu. Leave the Lapse Rate selection as --None--.
11. Save the project.

## Create and Compute a Simulation Run

1. Create a Simulation Run by selecting Compute | Create Compute | Simulation Run.... Name the run WY2006_TI and select the Next button. Select the SwampAngel basin model, the WY2006 meteorologic model, and the WY2006 control specifications on the following screens. Select the Finish button.
2. Select the WY2006_TI simulation from the Compute Selection Box in the Toolbar.
3. Click the Compute button  to run the simulation.
4. Navigate to the Results tab and expand the Simulation Runs folder.
5. Select the WY2006 simulation and expand the SASP subbasin.
6. Hold the keyboard Ctrl button and select the Observed SWE and Snow Water Equivalent output variables, as shown in the figure below.
7. Select the Plot button from the Toolbar. The results should appear as in the figure below.

The Dry Melt Rate can be specified using (1) an Annual Pattern, (2) an ATI Function, or (3) a Fixed Value.

In this tutorial, the Dry Melt Rate was described using a Fixed Value. Currently, only constant parameters can be sampled within the Uncertainty Analysis. Annual Patterns and ATI Functions are not currently supported within an Uncertainty Analysis. However, the Temperature Index snowmelt method is typically parameterized using an ATI Function for the Dry Melt Rate.

The following tutorials contain options to calibrate the Temperature Index snowmelt method using an ATI Function for the Dry Melt Rate:

# Create and Compute an Uncertainty Analysis

1. Create an Uncertainty Analysis by selecting Compute | Create Compute | Uncertainty Analysis....
2. Name the Uncertainty Analysis U_WY2006_TI as shown in the figure below. Click the Next> button.
3. Select the SwampAngel_TI basin model. Click the Next> button.
4. Select the WY2006 meteorologic model. Click the Finish button.
5. Navigate to the Compute tab. A few folder titled Uncertainty Analyses was created. Expand the folder and select the U_WY2006_TI analysis.

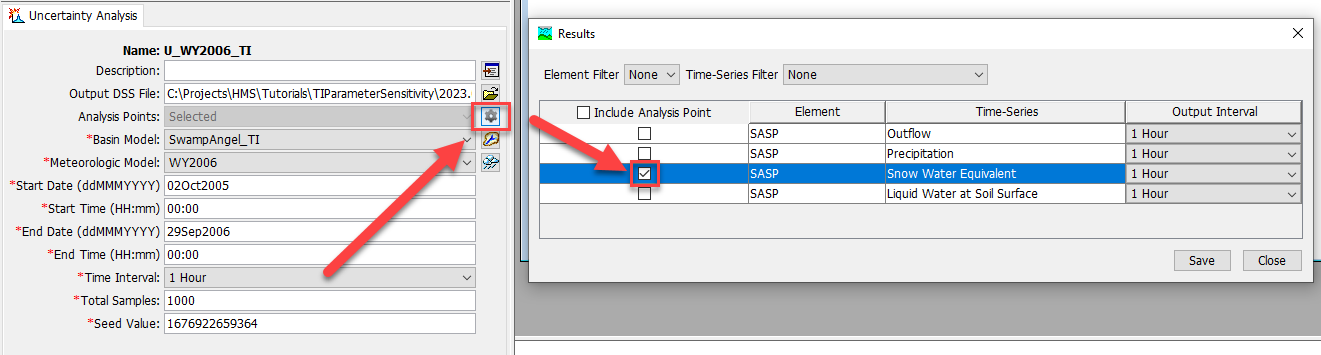

6. In the Component Editor, select the gear icon next to the Analysis Points field. Click the checkbox next to the Snow Water Equivalent time series as shown in the figure below.
7. Click the Save and Close buttons.
8. In the Component Editor, enter the following for the Start Date/Time and End Date/Time:
• Start Date: 02Oct2005
• Start Time: 0000
• End Date: 29Sep2006
• End Time: 0000
9. Select a Time Interval of 1 Hour from the drop-down menu.
10. Enter 1000 in the Total Samples field. The Total Samples refers to the number of times the program will sample new parameter values and run a simulation.
11. Right click on the uncertainty analysis and select Add Parameter.
12. Repeat the above step 7 more times to add a total of 8 parameters.
13. For each parameter, select subbasin SASP in the Element drop-down menu.

14. On the Parameter tab, select Simple Distribution from the Method drop-down menu and Uniform from the Distribution drop-down menu. The uniform distribution was used for this parameter sensitivity analysis because no information about parameter distributions was available.

15. Enter the Minimum and Maximum for each parameter using the values in the table below. For the uniform distribution, the Minimum and Lower values are the same and the Maximum and Upper values are the same. Do not enter the units in HEC-HMS; they are provided for clarity. The Parameter tab for PX Temperature is shown in the figure below.

The Ground Melt Rate parameter describes snow melt that results from the transfer of heat from the ground beneath the snowpack. This parameter was not included in the Uncertainty Analysis because it is almost always set to 0 in/day.

The ATI-Coldrate Function was not sampled in the Uncertainty Analysis. However, this parameter has a significant impact on the simulation results and should be calibrated.

Parameter

Distribution

Minimum

Maximum

Units

ATI-Coldrate Coefficient

Uniform

0.1

0.5

-

Base Temperature

Uniform

2538deg F

PX Temperature

Uniform

2538deg F

Cold Limit

Uniform

0.010.5in/day

Liquid Water Capacity

Uniform

010%

Rain Rate Limit

Uniform

02in/day

Wet Melt Rate

Uniform

02in/day
16. For the Dry Melt Parameter, select Simple Distribution from the Method drop-down menu and Uniform from the Distribution drop-down menu. Enter the Minimum/Lower and Maximum/Upper values shown in the figure below.

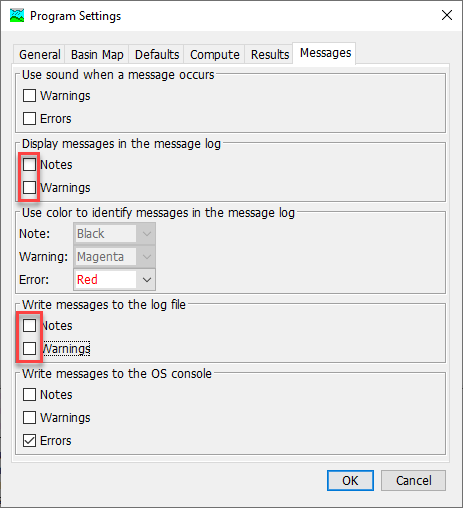

17. Turn off notes and warnings in the Message Log by selecting Tools | Program Settings.... Navigate to the Messages tab. Under the Display messages in the message log and Write messages to the log file sections, uncheck the boxes next to Notes and Warnings, as shown in the figure below. Displaying and saving messages increases the run time of the Uncertainty Analysis.

18.  Compute the Uncertainty Analysis.

The simulation will take approximately 10 minutes to compute.

# Extract Sampled Parameter Values

1. Navigate to the Results tab. Expand the Uncertainty Analyses folder and select the U_WY2006_TI uncertainty analysis. The Results tab should resemble the figure below.

HEC-HMS provides the sampled parameter values for each realization. In addition, the SWE time series and maximum SWE value for each realization are provided. Select a Parameter node to view the sampled parameter values, as in the figure below.
2. Open each Parameter node and copy the sampled parameter values to an Excel spreadsheet. Include a data label for each parameter (e.g. "PX Temperature").
3. Expand the SASP subbasin node and select the Maximum SWE time series node. Copy the output to Excel. Include a data label for the maximum SWE output.

# Perform a Multiple Linear Regression Analysis in Excel

The parameter values within this tutorial are generated through random sampling. Your parameter values will be different from the values shown in this section unless the same Seed Value is used in the HEC-HMS Uncertainty Analysis. The Seed Value is used to initialize the random number generator. In general, it is not advisable to change the Seed Value unless you are trying to duplicate results.

1. Compute the mean and standard deviation of each parameter and the maximum SWE using Excel functions AVERAGE and STDEV.S. The Excel spreadsheet should look similar to the figure below.
2. Before performing a regression analysis, the sampled parameters and maximum SWE output must be standardized. The 8 parameters have different units and scales. Standardization is needed so that parameters with larger standard deviations do not have greater influence on the regression results. In addition, standardization ensures that the regression coefficients have uniform units. The parameters and output were standardized by subtracting the mean and dividing by the standard deviation:

$//$

3. The mean and standard deviation for each standardized variable should be 0 and 1, respectively. The results of the standardization should look similar to the figure below.

4. Multiple linear regression can be performed in Excel using the Analysis ToolPak. Select FileOptions. Navigate to the Add-ins tab on the left side of the Excel Options dialog box. On the bottom of the dialog box, select Excel Add-ins from the Manage drop-down menu and click the Go... button. Select the check box next to the Analysis Toolpack add-in, as in the figure below. Click the OK button to close the dialog box.

5. Navigate to the Data tab | Analysis section | Data Analysis option.
6. Select Regression in the Data Analysis dialog box. Click the OK button.
7. In the Regression dialog box, make the following selections:
1. The Input Y Range is the range of cells containing the maximum SWE data (including the data label).
2. The Input X Range is the range of cells containing the standardized sampled parameters (including the data labels).
3. Check the Labels box to indicate that data labels were included in the Y and X ranges.
4. Under the Output Options, enter Results in the field next to New Worksheet Ply to save the regression analysis results in a new tab named Results.
8. The Regression dialog box should resemble the figure below. Click the OK button perform the regression analysis.

# Analyze Results

Navigate to the Results tab in Excel. The bottom table (boxed in red in the figure below) shows the results of the regression analysis. The coefficients are used to develop a linear regression of the general form:

$//$

where $//$ is the regression coefficient and $//$ is the intercept. In this tutorial, 8 parameters were evaluated. Therefore, the linear regression takes the following form:

$//$

A negative regression coefficient means that smaller parameter values increase the maximum SWE and a positive regression coefficient means that larger parameter values increase the maximum SWE. The P-value indicates whether the dependent variable is statistically significant. Low P-values and high coefficient values indicate that the parameter has a significant impact on the dependent variable, or model output.

1. Select the 8 parameter labels and the corresponding regression coefficients.
2. Navigate to the Insert tab and select Recommended Charts in the Charts section. Select the Clustered Bar option. Click the OK button. The plot should look similar to the figure below.

The results of this parameter sensitivity analysis are specific to the Swamp Angel Study Plot. The regression coefficients for Temperature Index snowmelt parameters will vary by location. A site-specific parameter sensitivity analysis should be performed for your modeling domain.

The tornado plot above shows that the Dry Melt Rate has the largest negative regression coefficient. A small Dry Melt Rate value results in a high Maximum SWE value since less snow melts. The PX Temperature and Base Temperature parameters have the largest positive regression coefficients. Recall that the PX Temperature is used to discriminate between precipitation falling as rain or snow. When the air temperature is higher than the Base Temperature, snowmelt occurs. Increasing the PX Temperature value will cause more precipitation to fall as snow, resulting in a deeper snowpack. Increasing the Base Temperature will cause the snowpack to last longer since higher temperatures are required to melt the snow.

3. Another way to evaluate model results is to compare individual model parameters to maximum SWE. Two parameters were selected for further analysis: Base Temperature and Cold Limit. The first plot is a comparison between the standardized Base Temperature and standardized Maximum SWE. The second plot is a comparison between the standardized Cold Limit and standardized Maximum SWE. The figures show that Base Temperature has a large impact on maximum SWE while Cold Limit has very little impact on maximum SWE.

The results of the regression analysis can inform calibration efforts. Modifying the Base Temperature, PX Temperature, Rain Rate Limit, Dry Melt Rate, and Wet Melt Rate will be most impactful when calibrating the model.
The Excel spreadsheet used to perform the regression analysis is included below.
