Viewing Calibration Results

The Calibration Results can be visualized by choosing a Statistical Metric Variable through the Spatial Results Toolbar. When the variable has been chosen, the subbasins on the map would be color-coded based on the range that they fall into.

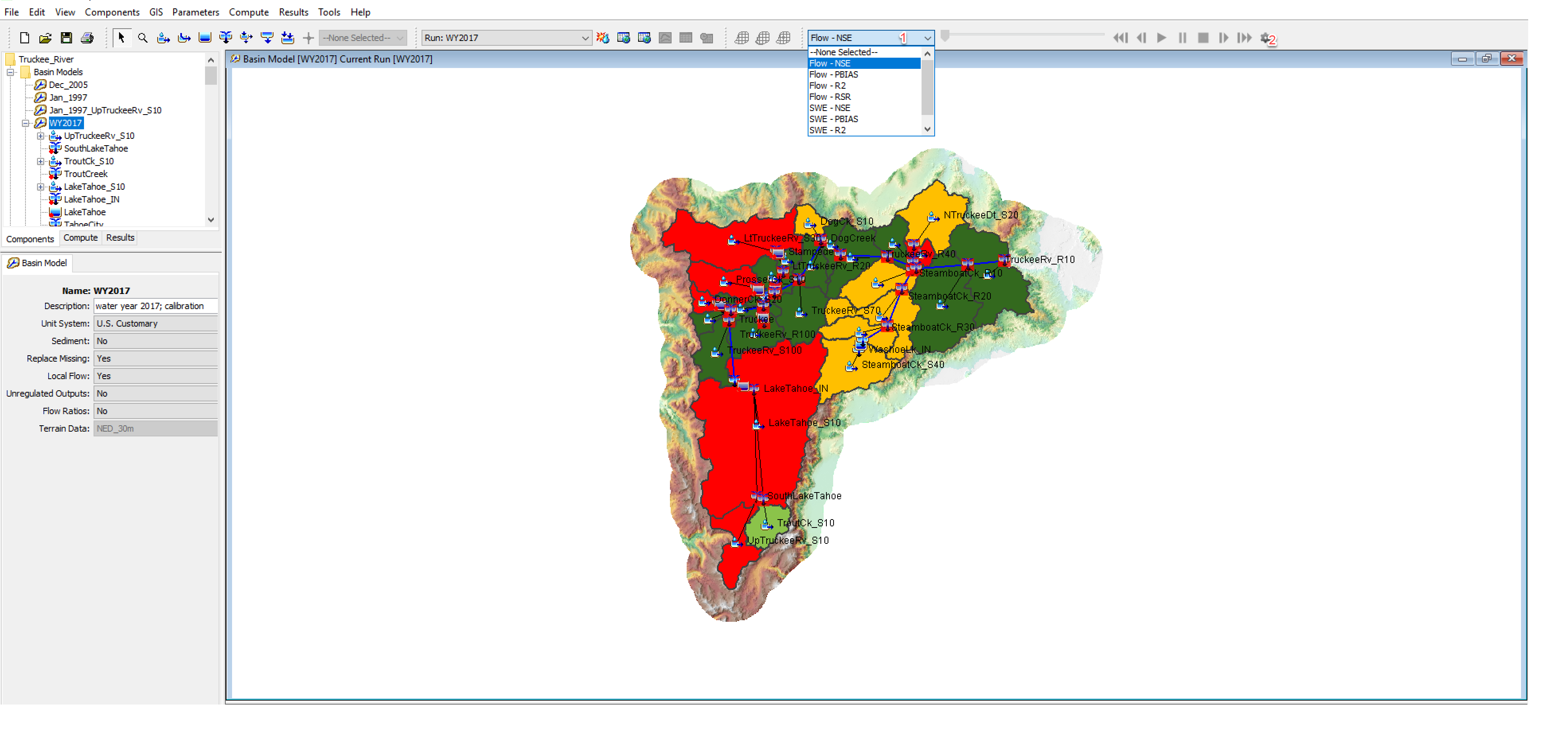

To view Calibration Results, navigate to the combo box (1) in the figure below, and choose a Statistical Metric Variable.

Choosing a Statistic Metric Variable to view Calibration Results

To make edits to the Ranges and Colors, navigate to the Gear icon at (2), and a Display Settings dialog will popup. One example of the dialog are shown below.

Display Settings dialog accessed for the selected Statistic Metric Variable

The color scales reflect the Moriasi et. al. 2007 and 2015 performance evaluation criteria. In particular, the following criteria are used:

Table 9 metrics in Moriasi et. al. 2015 paper for R², NSE, and PBIAS
Table 4 metrics in Moriasi et. al. 2007 paper for RSR

Below is a table showing the combined performance criteria from the two papers.

Combined Performance Criteria

Performance Rating	Color Code	R²(2015)	NSE (2015)	RSR (2007)	PBIAS (2015)
Very Good	Dark Green	0.85 < R²≤ 1.00	0.80 < NSE ≤ 1.00	0.00 < RSR≤ 0.50	PBIAS < ±5
Good	Light Green	0.75 < R²≤ 0.85	0.70 < NSE ≤ 0.80	0.50 < RSR≤ 0.60	±5 < PBIAS ≤ ±10
Satisfactory	Orange	0.60 < R² ≤ 0.75	0.50 < NSE ≤ 0.70	0.60 < RSR ≤ 0.70	±10 < PBIAS ≤ ±15
Unsatisfactory	Red	R² ≤ 0.60	NSE ≤ 0.50	RSR > 0.70	PBIAS ≥ ±15
